APlusLift 4000LB Sliding Bridge Jack - Manual or Air Operated

APlusLift 4000LB Sliding Bridge Jack - Manual or Air Operated

Regular price $1,439.00
Regular price $1,635.00 Sale price $1,439.00
Sale Sold out
Style
Delivery Option

All 4-Post Lifts and Jacks.

  • MSJ-40 - Manual Operated Bridge Jack

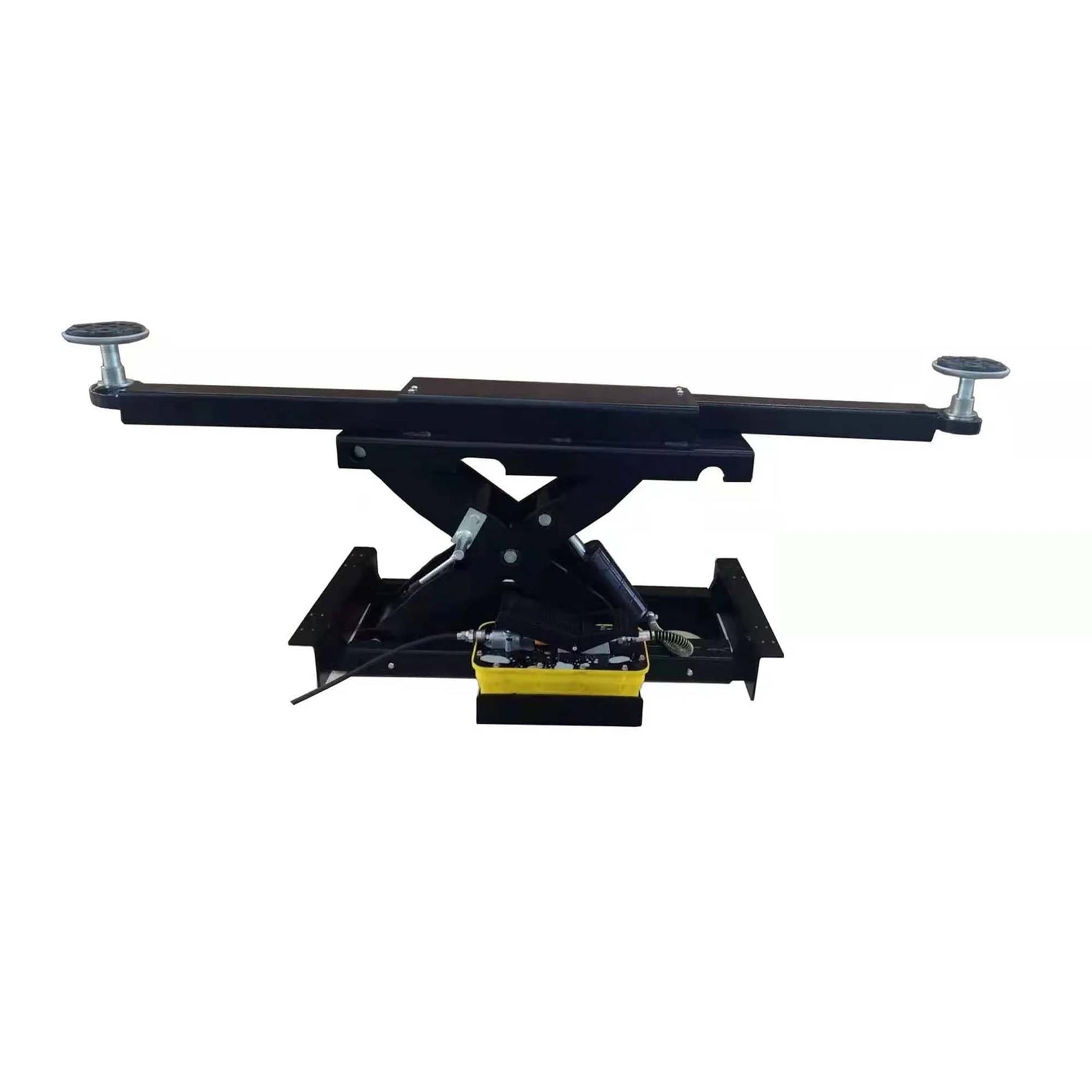

  • ABJ-40 - Air Operated Bridge Jack

  • Both MSJ-40 and ABJ-40 bridge jacks will fit HW-8S, HW-8SXLT, HW-9KDP, and HW-4P10S car lift models.

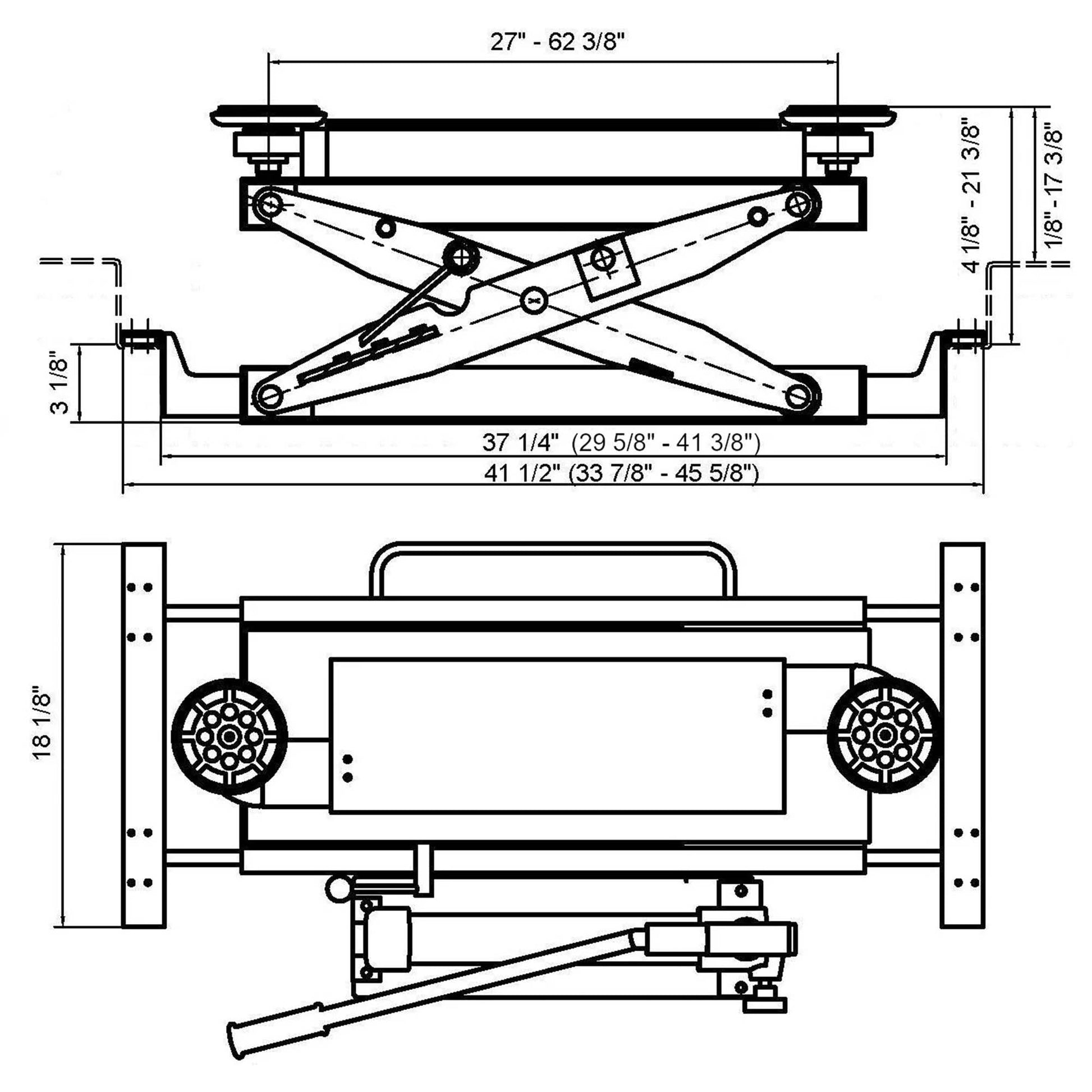

  • Minimum Lifting Height 1/8" (See Diagram)

  • Two Adjustable Screw Pads and Two 2 3/4" Tall Truck Adapters Included

  • Long Arm Extensions: 27" - 62 3/8"

  • Adjustable Width to fit almost all service and storage lifts

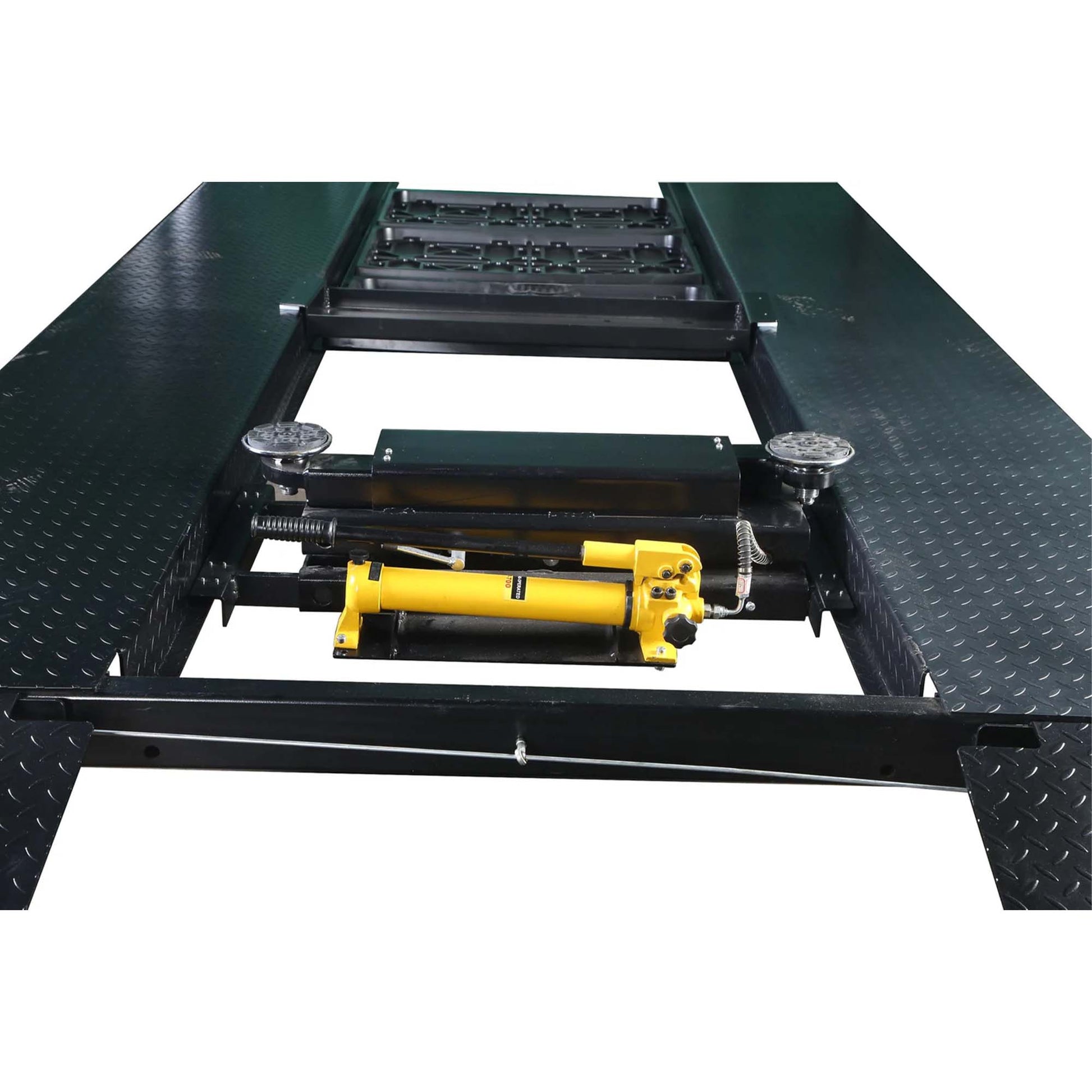

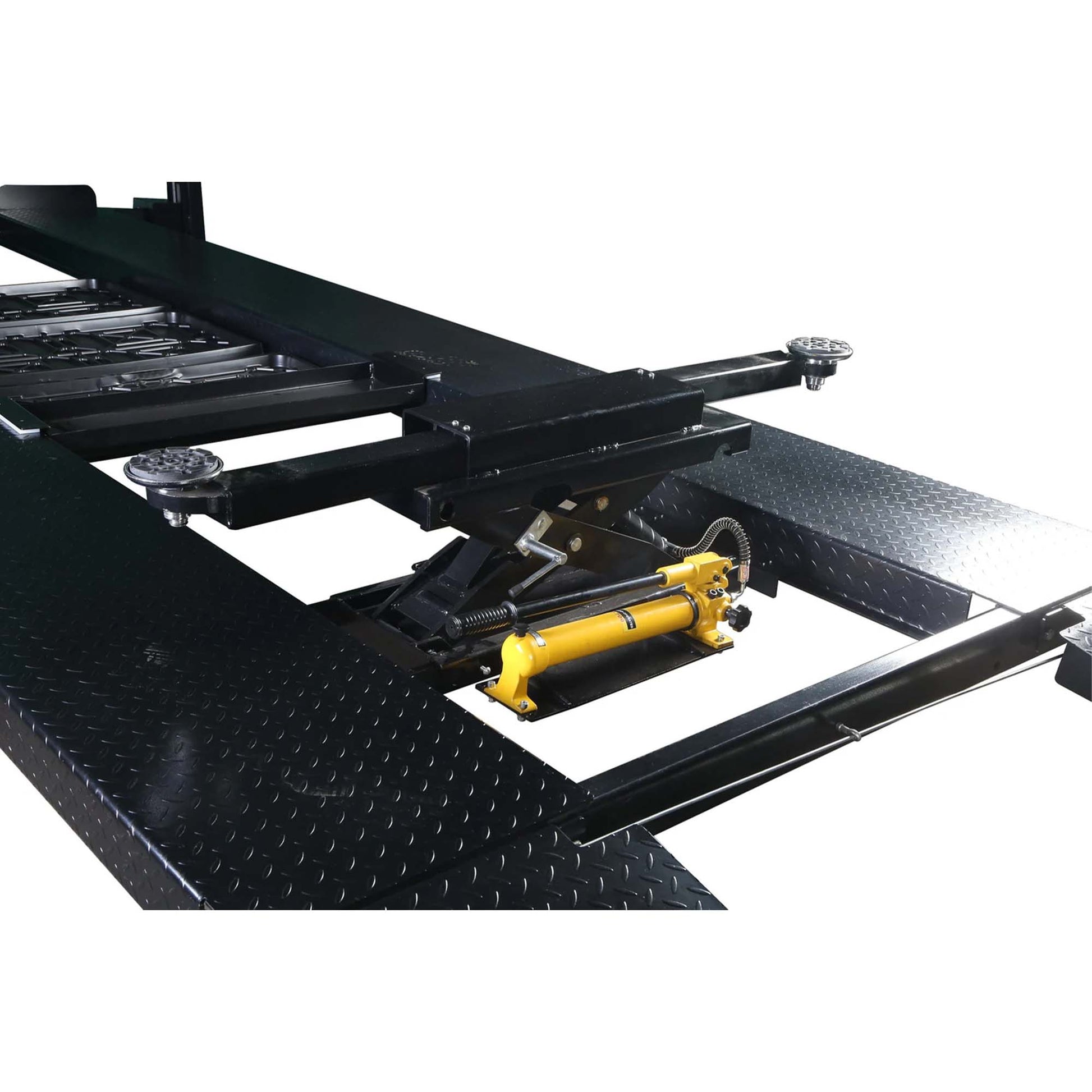

APlusLift 4000LB manual operated (MSJ-40) and air operated (ABJ-40) sliding bridge jacks are ideal complement to a 4-post storage lift. The jack can be used to lift front or rear side of a vehicle to perform wheel and brake services efficiently. The ABJ-40 sliding jack is equipped with telescoping support arms and adjustable screw pads for adjusting lifting height to accommodate most vehicles. Optional truck adapters (height extensions) are available if needed.

Free shipping to a commercial address (in a business zone) or a freight terminal. Residential address: +$60. Liftgate service: +$50. Additional freight charges may apply for remote areas and high cost delivery areas.

Warehouse Pickup Locations (Contact Us for $150 Discount): Chicago (IL), Kansas City (MO), Mobile (AL), Mansfield (OH), Tacoma (WA).

Frequently Asked Product, Order, and Shipping Questions and Technical Questions

Specifications and Features

Model ABJ-40 MSJ-40
Installation Manual ABJ-40 Manual MSJ-40 Manual
Operation Mode Air Operated Manual Operated
Warranty 1 Year (12 Months)
Lifting Capacity 4,000 LB
Overall Length 33 7/8" - 45 5/8"
Distance Between Arm Pads 27" - 62 3/8"
Overall Width 18 1/8"
Lifting Height 1/8" - 17 3/8"
Hydraulic Oil #10
Air Requirement 90-120 psi (ABJ-40 only)
shipping Weight 300 LB
Shipping Dimensions 40"L x 24"W x 11"H
Parts Included
  • Two Adjustable Screw Pads Included
  • Two 2 3/4" Tall Truck Adapters Included
Feature The adjustable width of the jack makes it fit almost all service and storage lifts
