[Pre-Order] APluslift Falcon 18000LB and 22000LB Mobile Column Lifting System

[Pre-Order] APluslift Falcon 18000LB and 22000LB Mobile Column Lifting System

$11,995.00
$11,995.00
Sale Sold out
Model
Delivery Option
 More payment options

All Mobile Column Lifts

  • The product is expected to be delivered in about 90-120 days starting from the day the product is ordered.  We require a 10% down (non-refundable) and the remaining balance paid before we ship it to your location. Please email us if you are interested.

  • 3 Year (36 Months) Warranty!

  • CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity

  • Each column has a maximum lifting capacity of 18,000LB or 22,000LB.

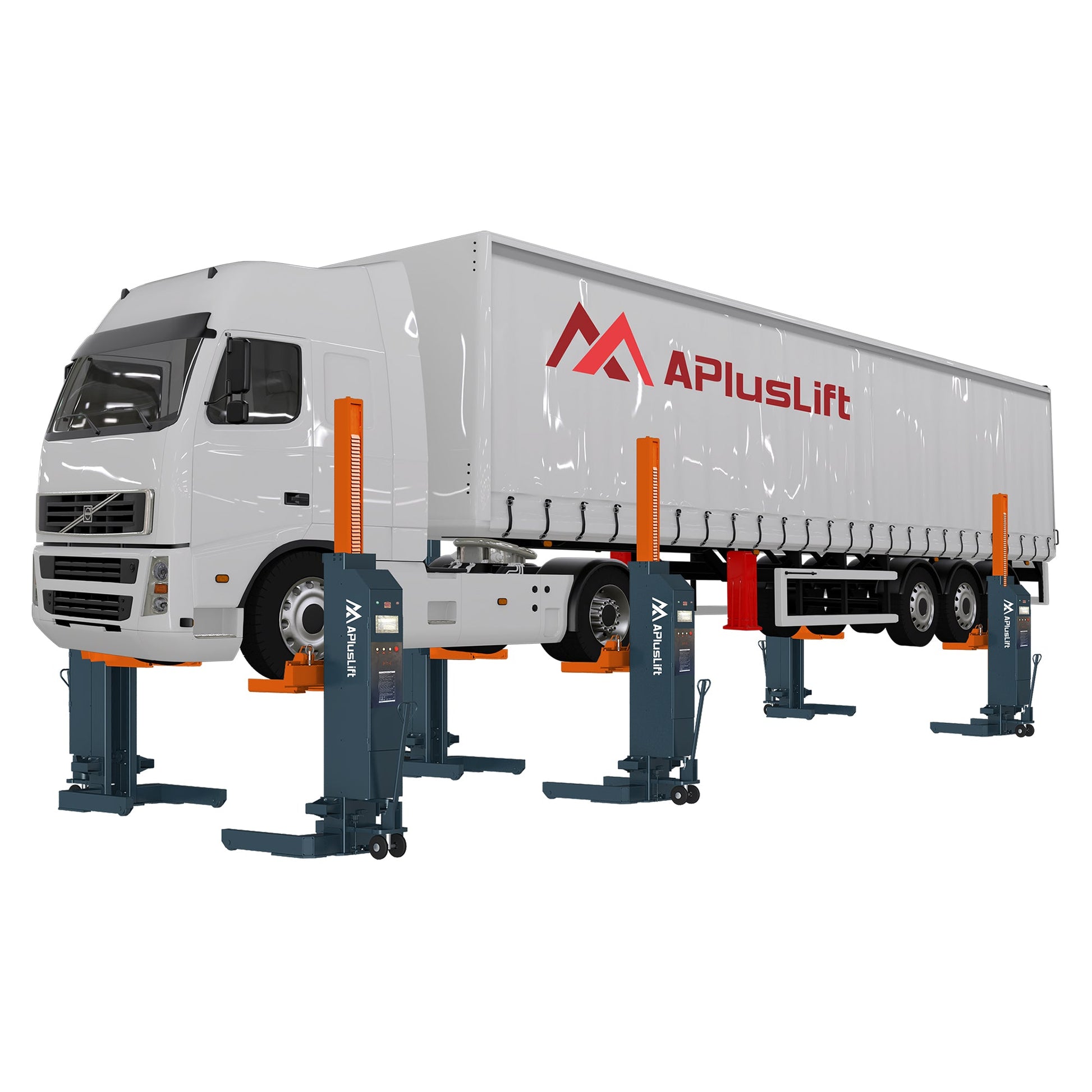

  • Multiple group combinations (up to 48 columns).

  • Wired data communication.

  • Double safety guaranteed by mechanical and hydraulic locking systems.

  • Move Kit, Moving wheel, Rubber pad Included to Easy Movement

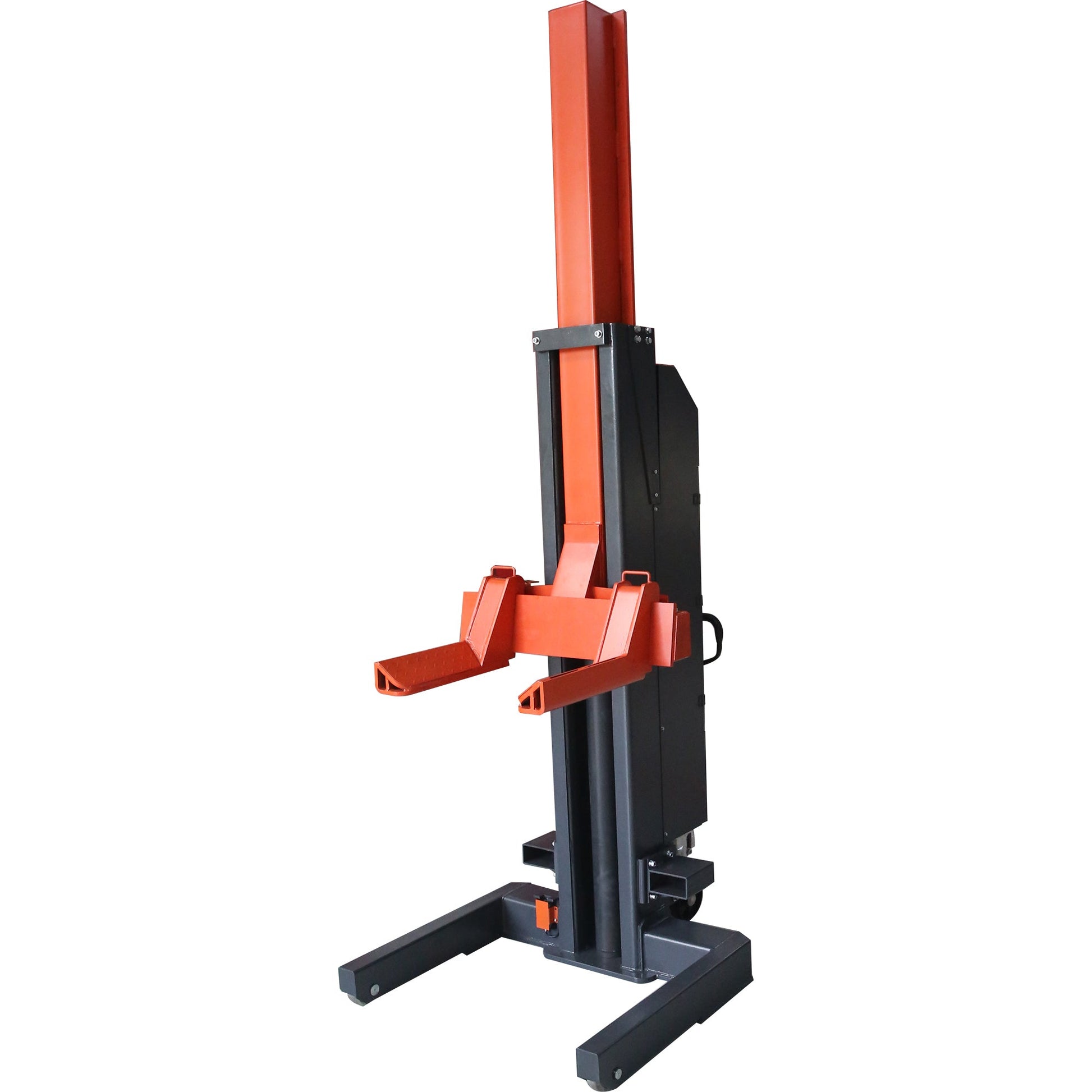

APlusLift Falcon MCL-180 Mobile Columns Lifting. It is built with quality materials and good workmanship. EVERY PART IS FULLY TESTED. The car lift is comparable to Known High-End Brands. Suggestions to improve our products and service are always welcome!

Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.

Warehouse Pickup Locations (Contact Us for $500 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Las Vegas (NV), Mobile (AL), Mansfield (OH), Portland (OR), Tacoma (WA), Virginia Beach (VA), and Watsontown (PA).

Frequently Asked Product, Order, and Shipping Questions and Technical Questions

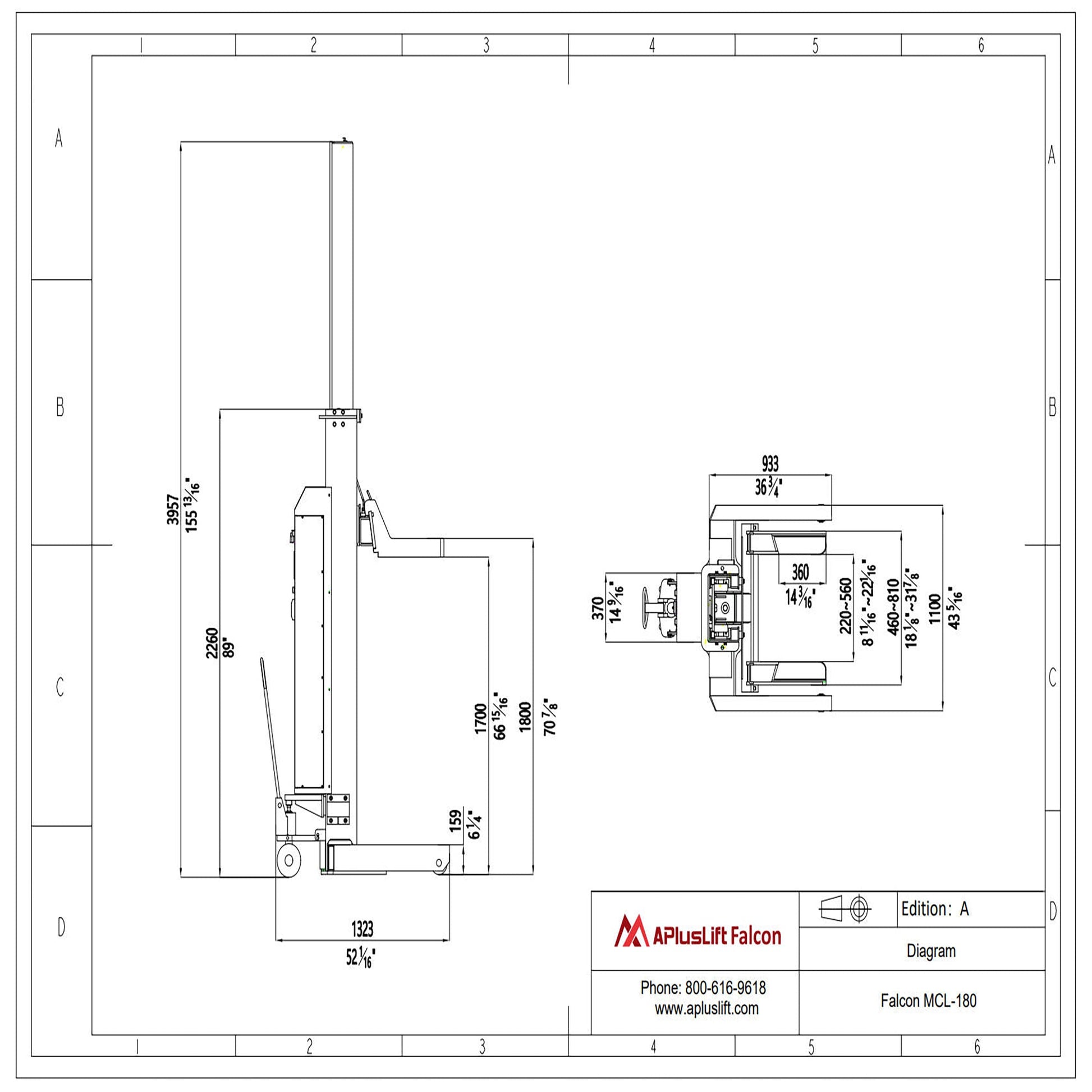

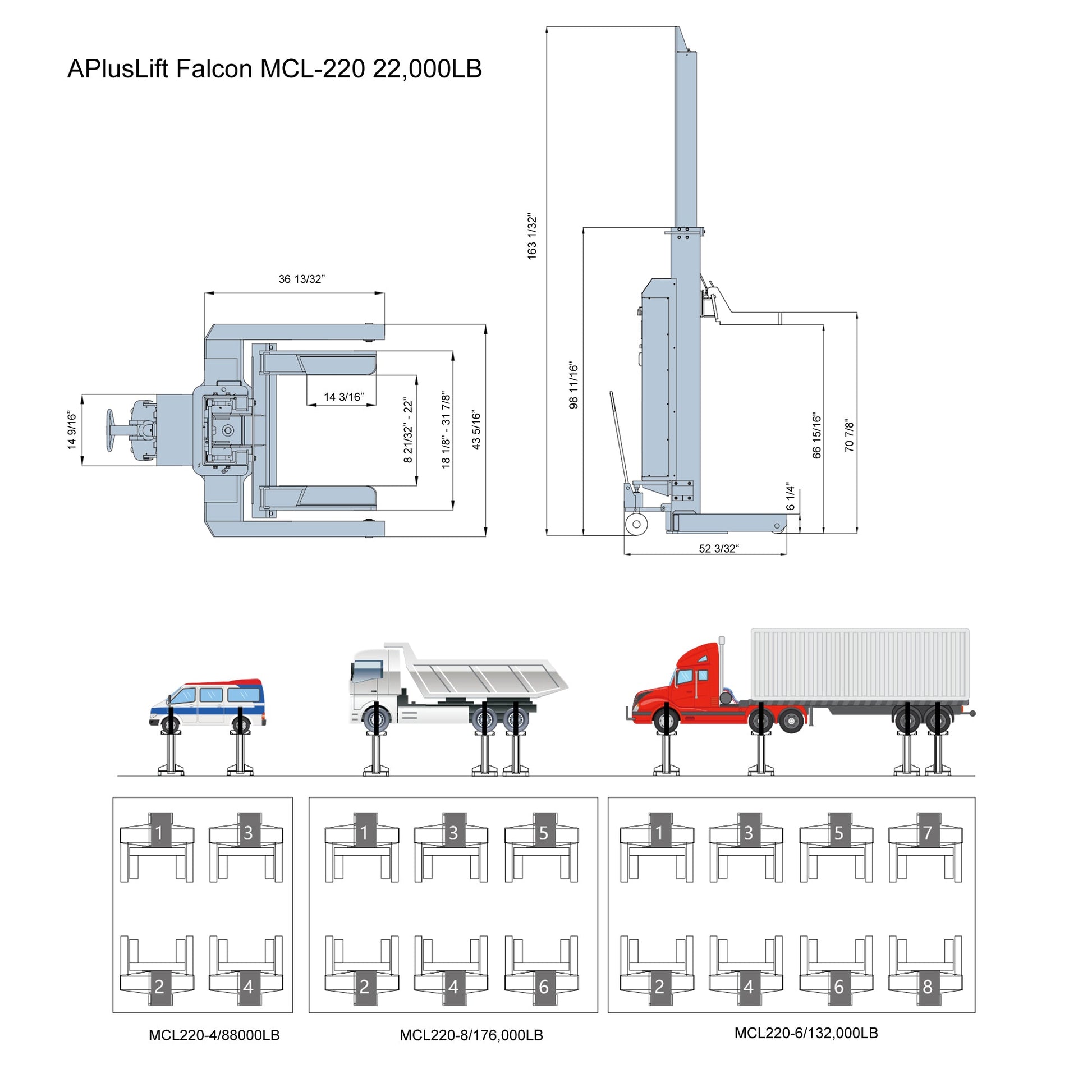

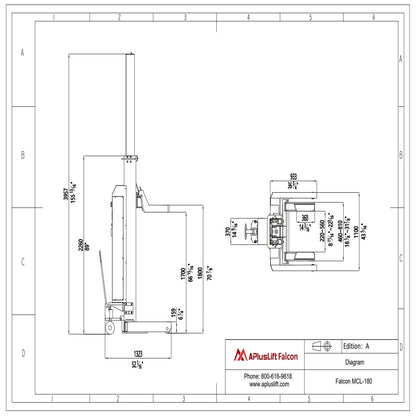

Specifications and Features

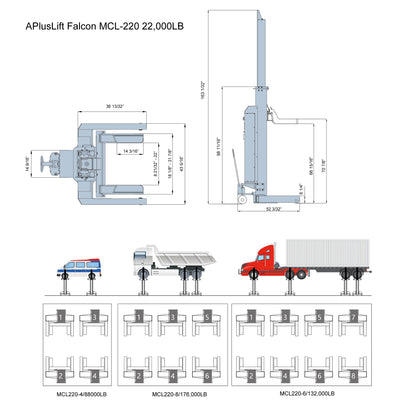

Model MCL-180 MCL-220
Manual MCL-180 Manual MCL-220 Manual
Lifting capacity 18,000lbs per column 22,000lbs per column
Column steel thickness 1/4" 5/16"
Carriage steel thickness 5/16" 5/16"
Overall Height 155 3/4" 163 1/32"
Maximum Lift Height 70 7/8" 70 7/8"
Minimum Height of Adjustable Pads from Ground 6 1/4" 6 1/4"
Effective wireless communication distance 39 3/8" 39 3/8"
Maximum pressure at rated load 14.5MPa 17MPa
Unlocking system Electrical release
Hydraulic fluid specifications and usage 3-5 gallons AW32/AW46 (Not Included)
Motor voltage and power unit DC24V 3HP per column
Battery 2x12V 100Ah
Charger AC100-120V /200-240V
Operating voltage DC24V
Lifting time 85 seconds
Descent time 75 seconds
Operating temperature 0-60℃
Concrete Requirement 8" thick at 4000 psi reinforced with fiberglass or steel
Shipping Weight 1,870lbs per column 2,035lbs per column
Shipping package size 89"L x 46"W x 54"H per column 99"L x 46"W x 59"H per column

Features

  • CE Certified Lift Structure and Hydraulic System
  • Third party tested with a dynamic load capacity of 115%
  • Third party tested with a static load capacity of 150%
  • Each column has a maximum lifting capacity of 18,000LB or 22,000LB.

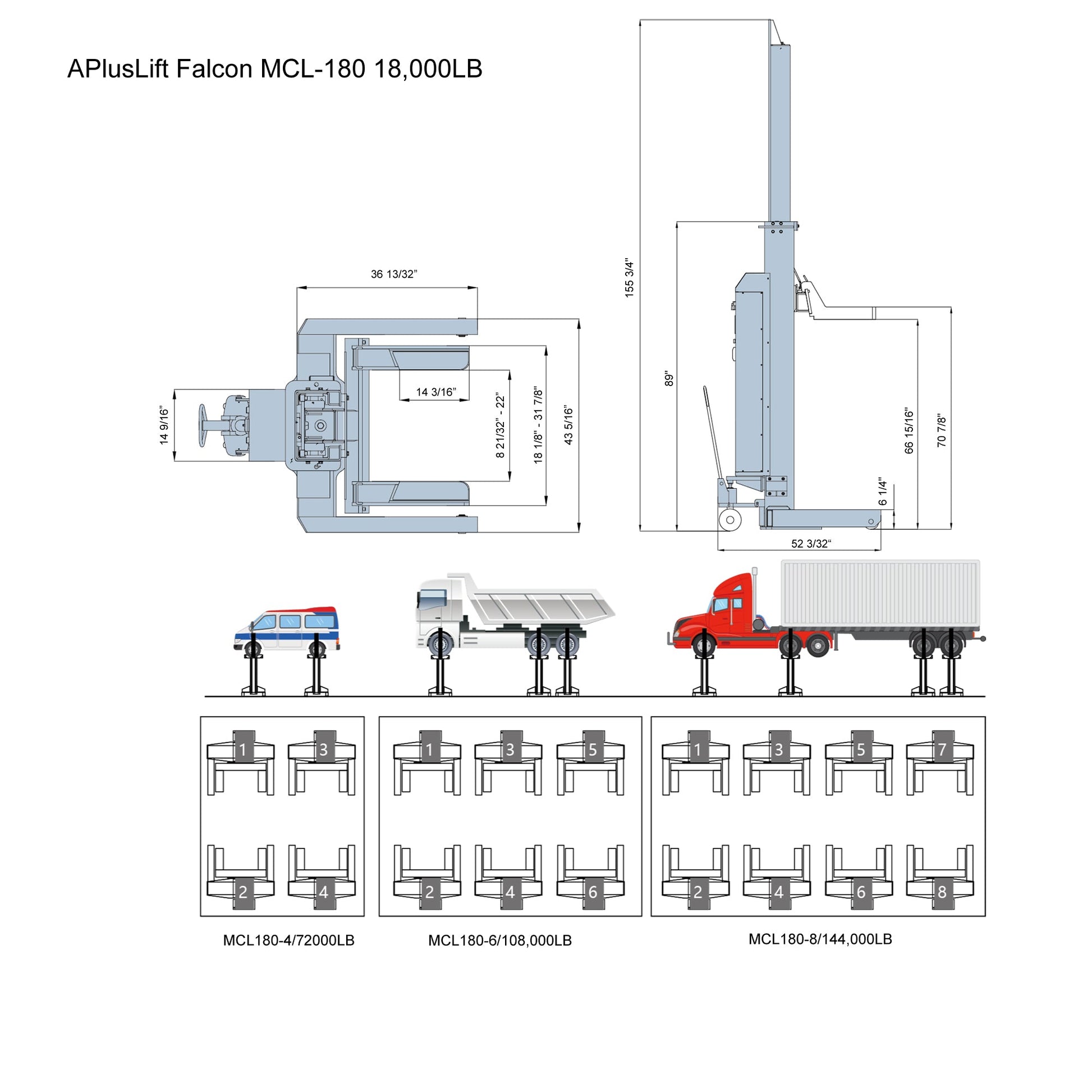

  • Multiple group combinations (up to 48 columns).
  • Wired data communication.
  • Double safety guaranteed by mechanical and hydraulic locking systems.
  • Synchronization achieved using microchip technology in the control system.
  • Touchscreen control, Real-time lifting height.
  • Emergency stop button on each column.
  • Any column in the group can become the control column using the access ID card
  • Audible warning for the final travel distance of the lowering movement
  • The lifting system is battery-powered. Each column has a charger rated AC110-240V-1Ph
  • DC24V safe control voltage

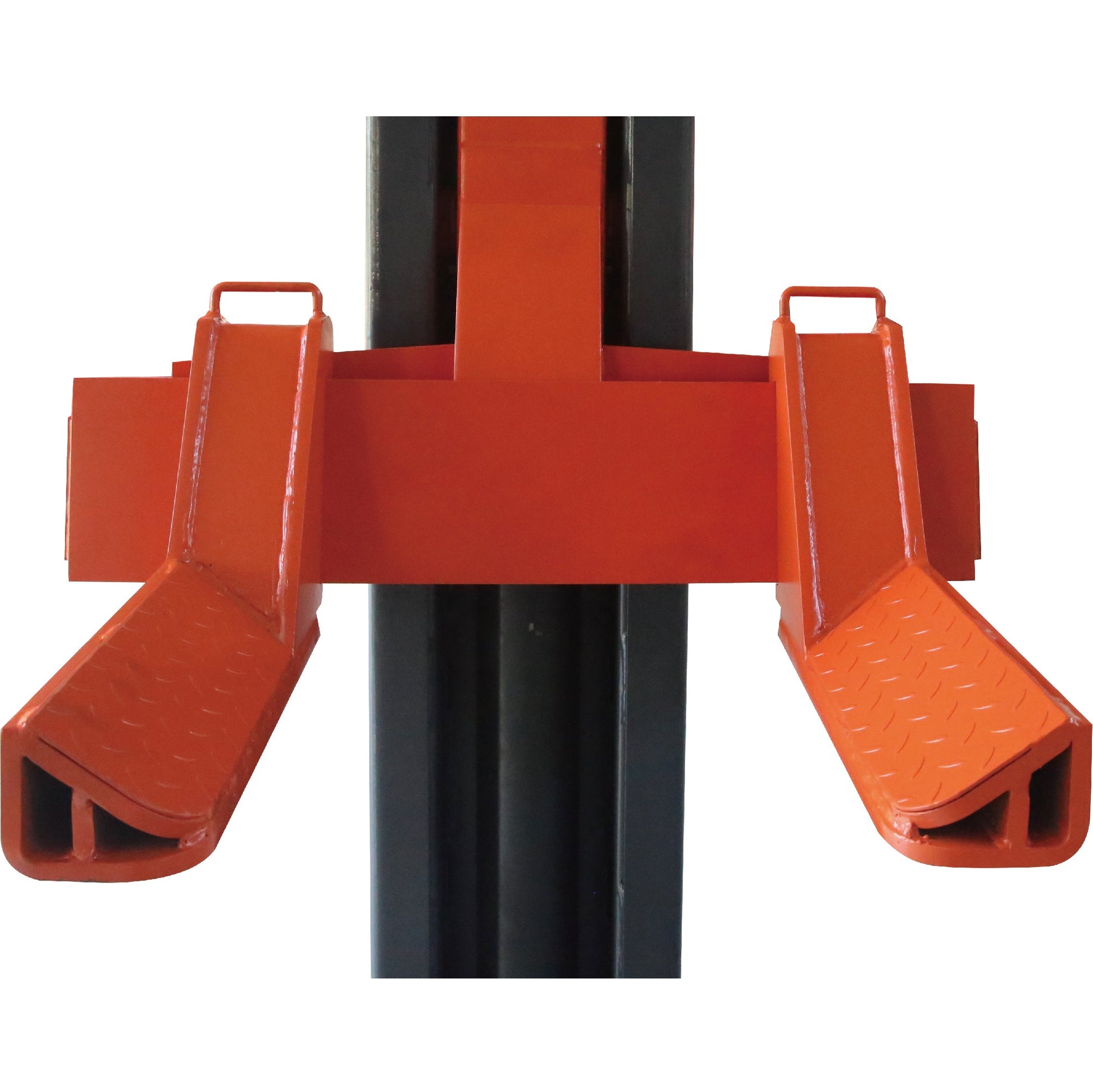

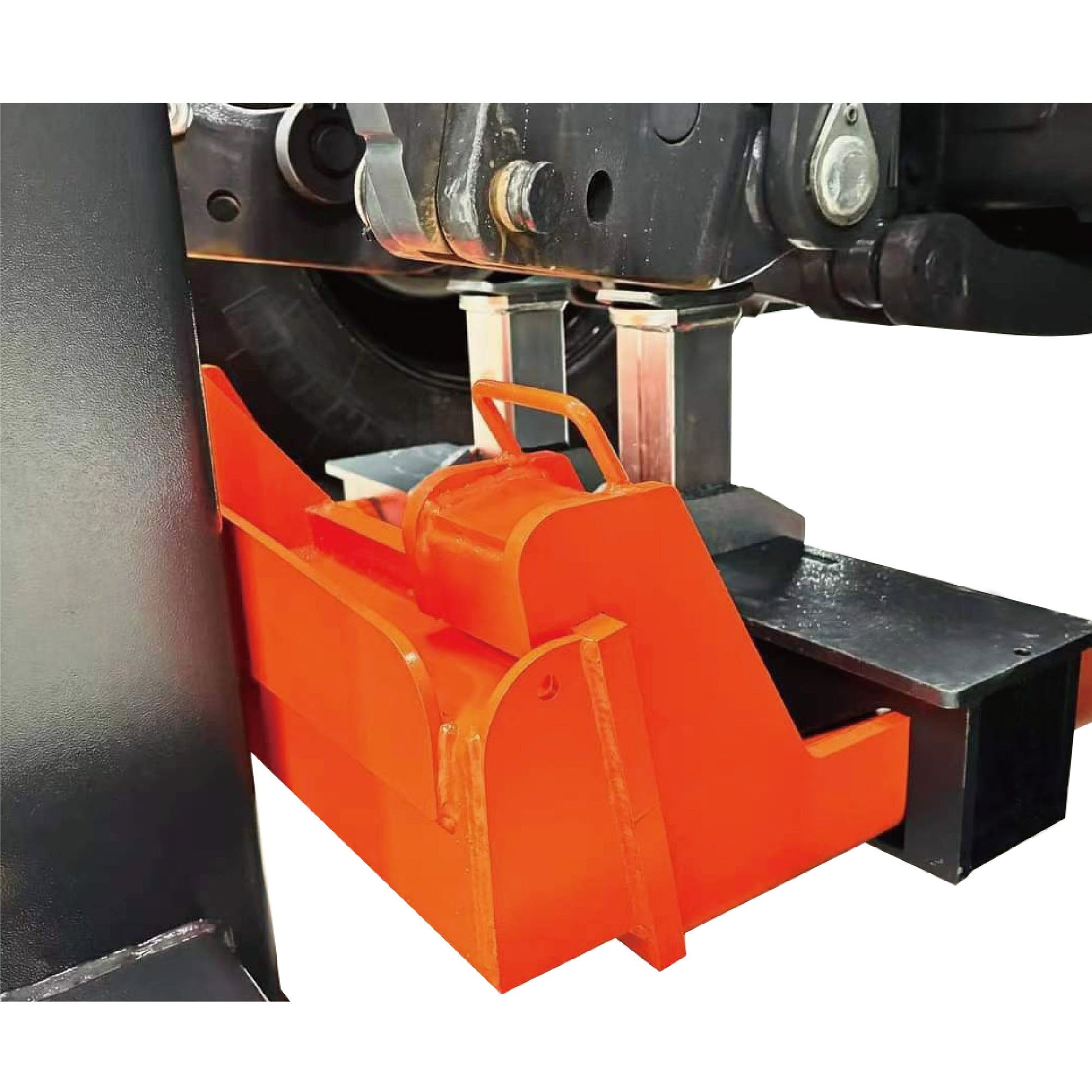

  • Adjustable wheel pick-up fork accommodates tire diameters from 23 5/8" to 49 7/32"
