APlusLift Falcon 9000LB 4-Post Portable Parking Storage Service Car Lift - AP-9H or AP-9H-XLT

APlusLift Falcon 9000LB 4-Post Portable Parking Storage Service Car Lift - AP-9H or AP-9H-XLT

$4,252.00 CAD
$4,252.00 CAD
Sale Sold out
Size
Delivery Option

All 4-Post Lifts and Jacks.

- Industry leading 3 Year (36 Months) Warranty (a $499 value!)

- ETL Certified Power Unit!

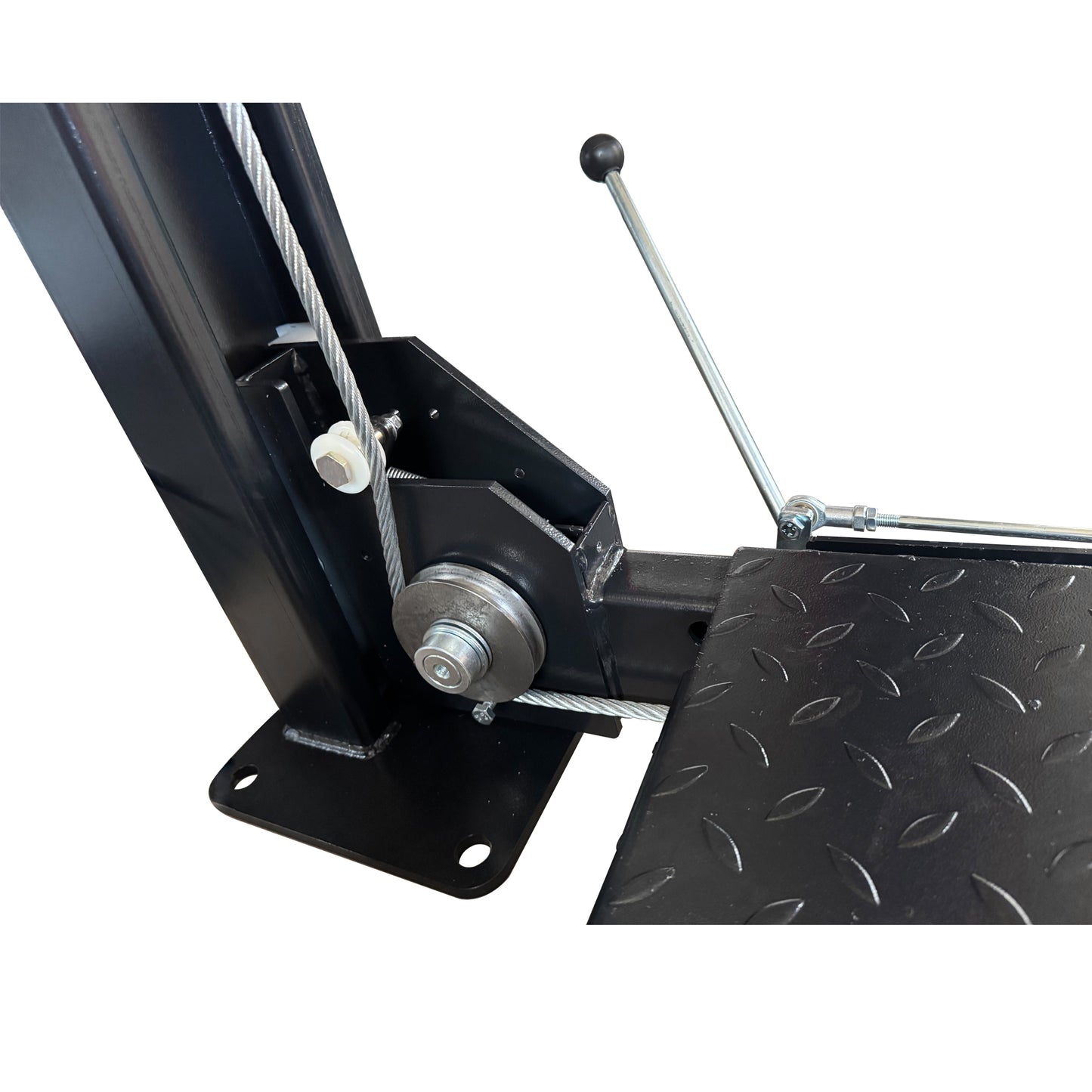

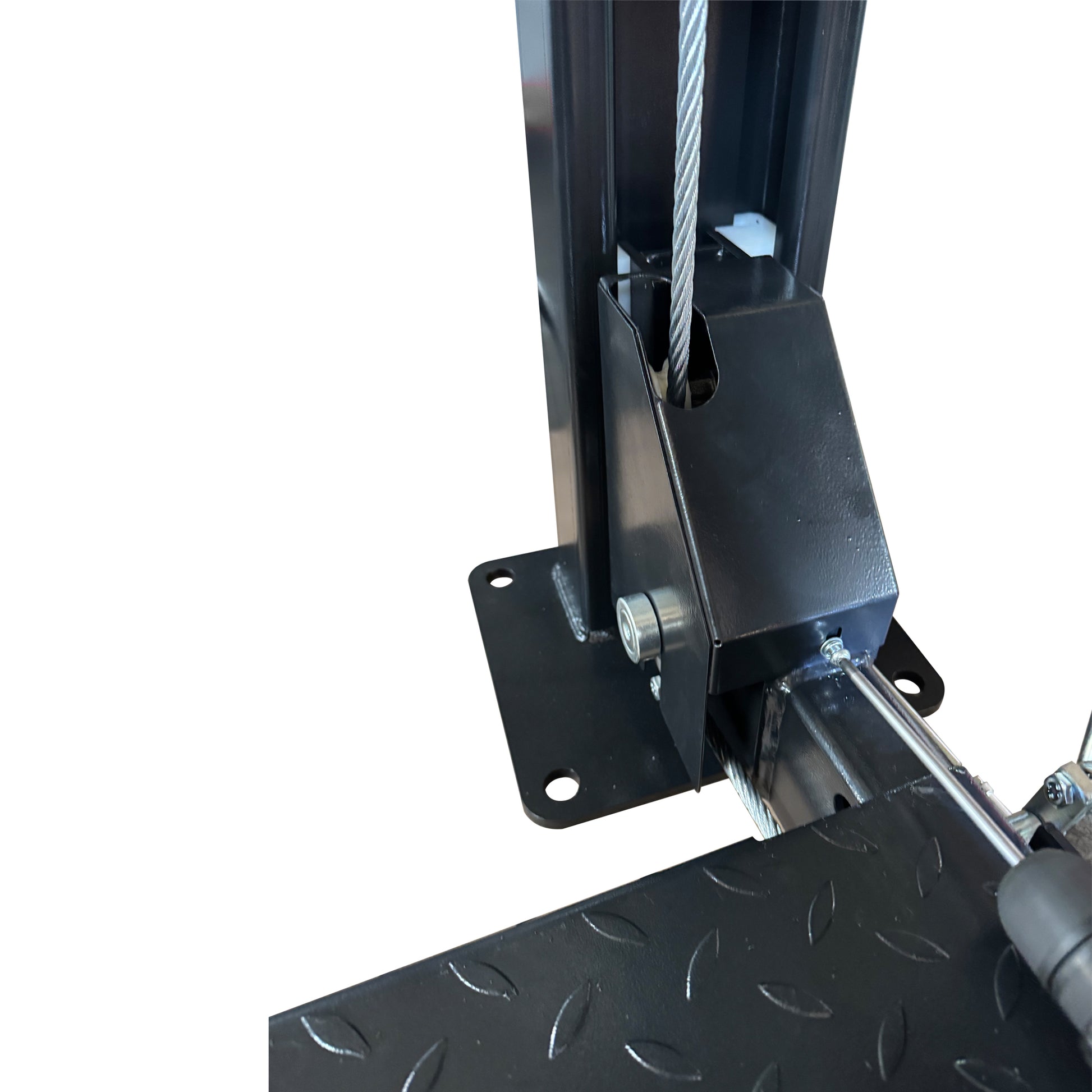

- Secondary Slack-Cable Lock System for Fail-Safe Protection

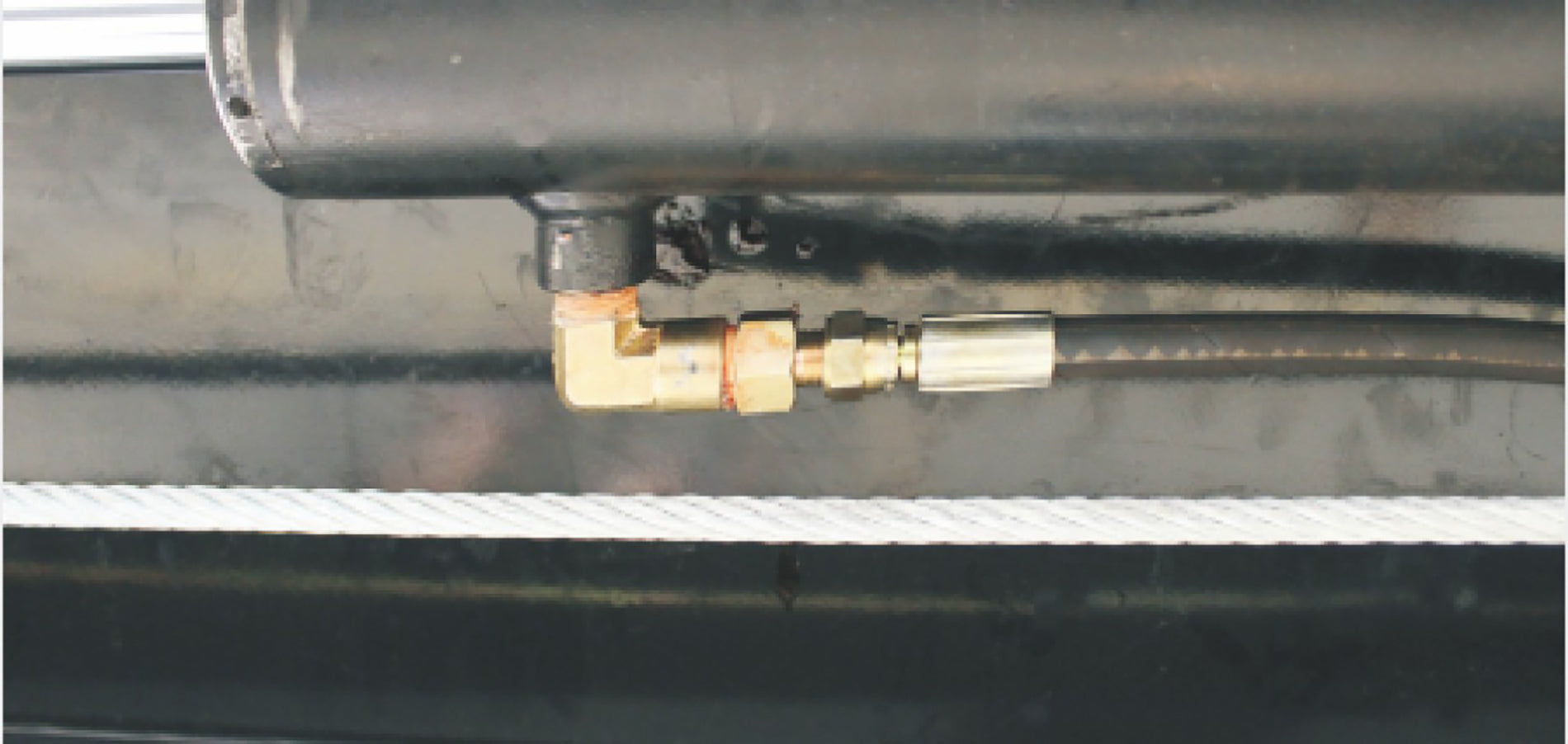

- Dedicated Hydraulic Return Line

- Drive Through Width 93" (AP-9H) and 98" (AP-9H-XLT)

- AP-9H Model Overall Dimensions: 179"L x 114"W x 98"H

- AP-9H-XLT Model Overall Dimensions: 199"L x 118"W x 98"H

- Free Caster Kit, Jack Tray, Drip Trays, Removable Aluminum Approach Ramps, and Power cord with Plug

- CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity

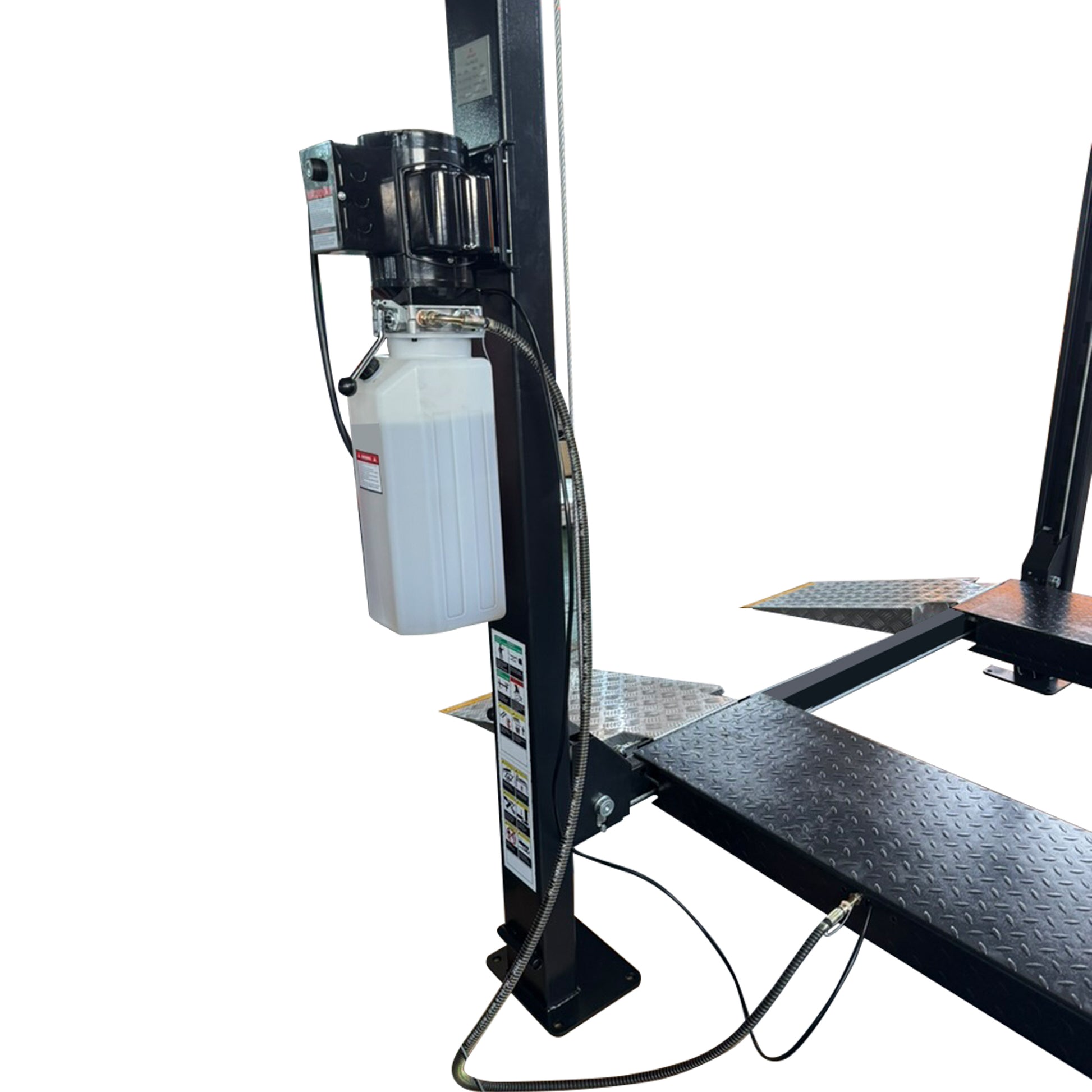

- Safer Operation with A Revolutionary High Efficient 110V 1.5HP Hydraulic Power Unit

- Powder Coated Finish with Superior Corrosion Resistance

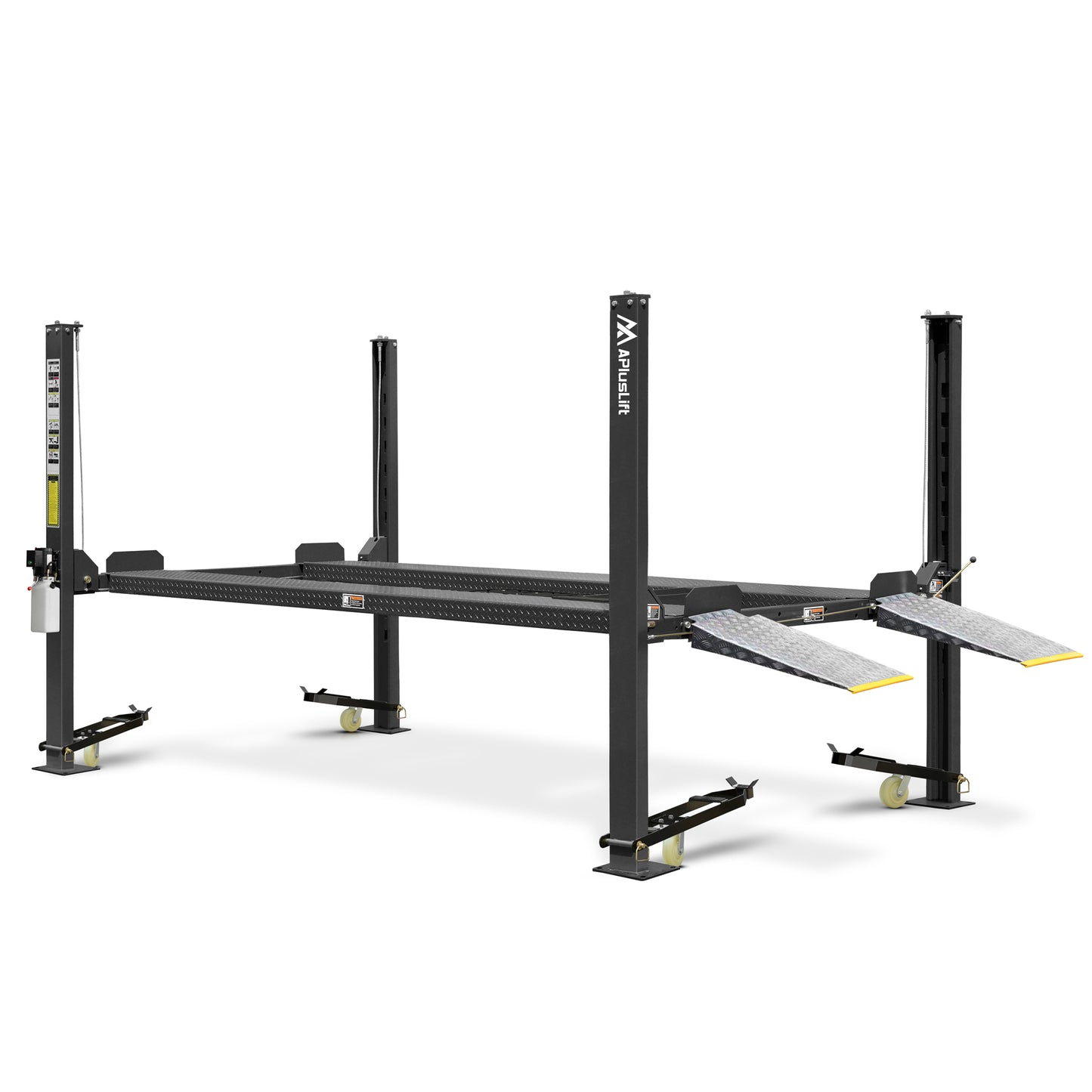

APlusLift AP-9H and AP-9H-XLT 4-post car lift (auto hoist) is a portable parking and storage lift with an 9,000 LB Capacity. The design of this lift model has been proven for 30 years. It is built with high-quality materials and workmanship and features a powder coating for superior corrosion resistance. This lift uses a revolutionary, highly efficient 110V 1.5HP hydraulic power unit for safer operation. The lift delivers the perfect solution for parking, storage, and service use by homeowners or restoration shops.

APlusLift Falcon AP-9H and AP-9H-XLT 4-post car lift (auto hoist) package includes a caster kit with polyurethane wheels, a jack tray, four drip trays, two aluminum removable approach ramps and a power cord with plug. The caster kit allows customers to move the lift around the garage easily and can be installed or removed in minutes. The jack tray allows customers to use a jack to lift one end of the vehicle. The drip trays prevent fluid from the top vehicle from dripping onto the bottom vehicle. Optional sliding jacks are available for purchase.

Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.

Warehouse Pickup Locations (Contact Us for $400 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Tacoma (WA).

Frequently Asked Product, Order, and Shipping Questions and Technical Questions

Specifications and Features

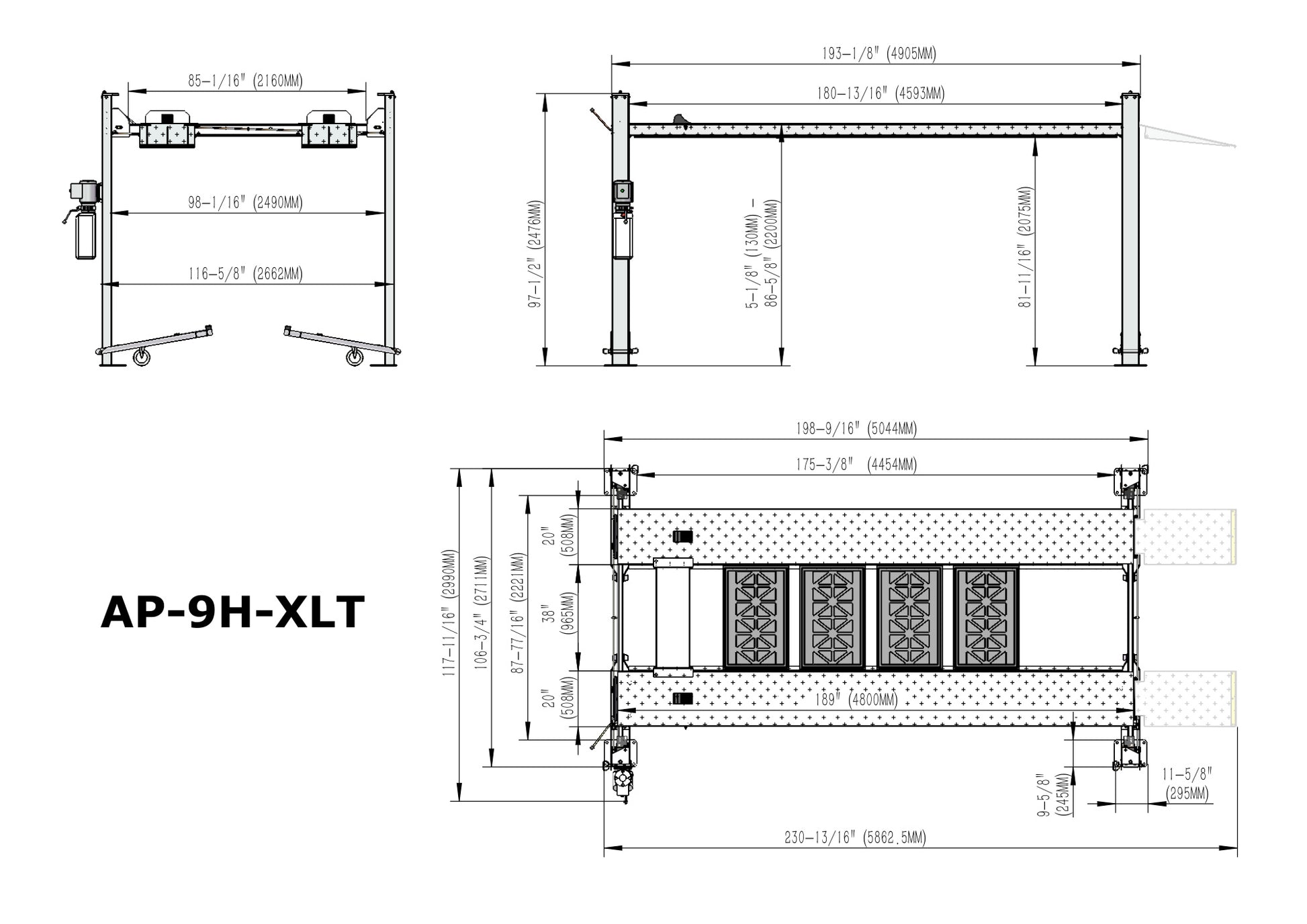

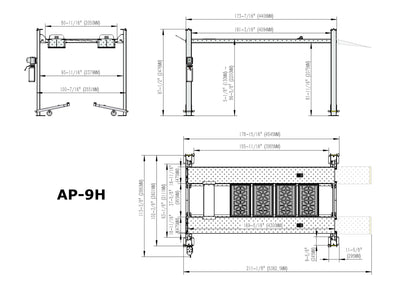

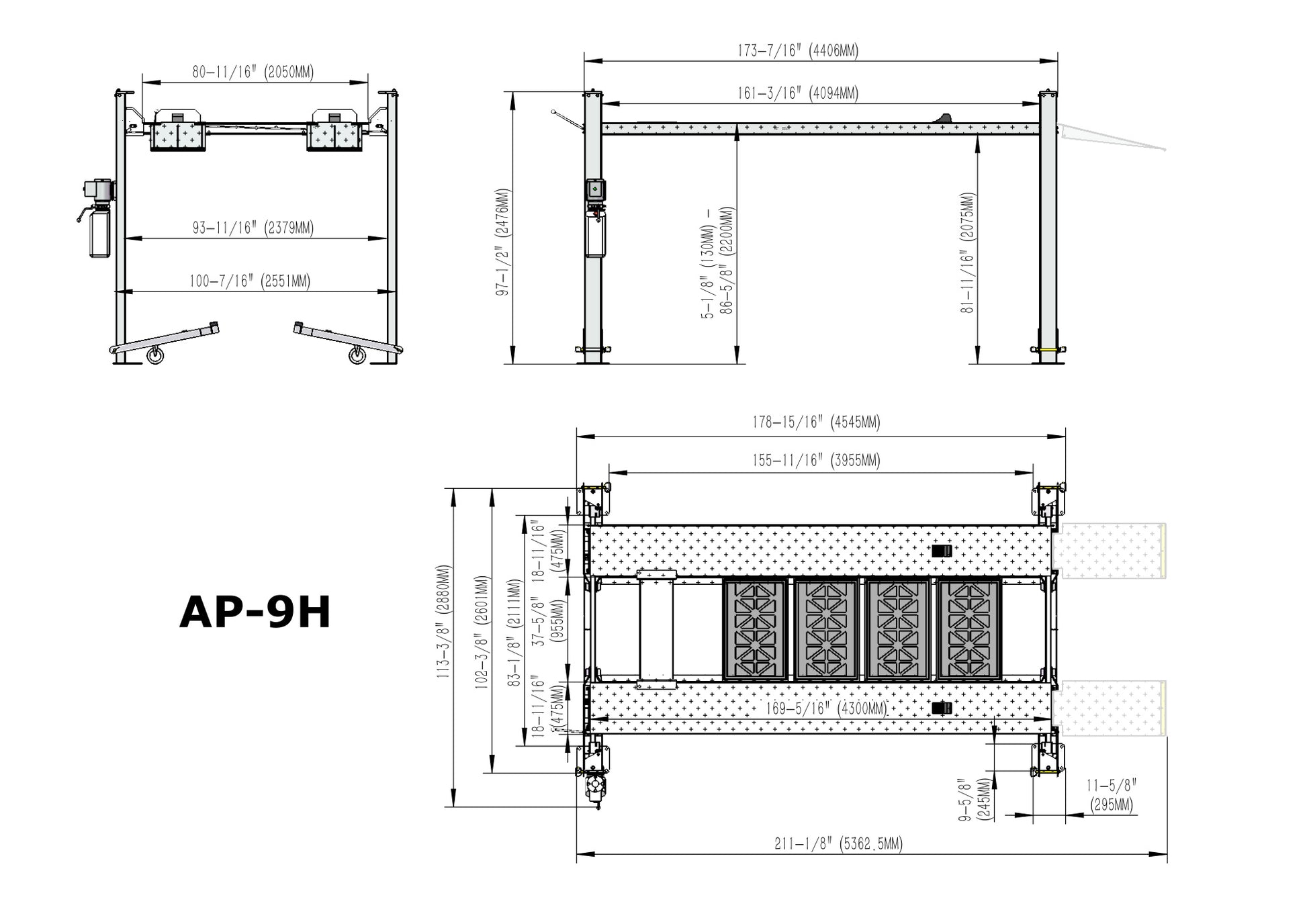

Model AP-9H-XLT AP-9H
Manual AP-9H-XLT Manual AP-9H Manual
Warranty 3 Years (36 Months) 3 Years (36 Months)
Lifting Capacity 9,000 LB 9,000 LB
Overall Length 199" 179"
Overall Width 118" 114"
Drive Through Width 98" 93"
Overall Height 98" 98"
Lifting Height 86" 86"
Clearance Under Runway 81" 81"
Runway Size 189"L x 20"W 169"L x 18 11/16"W
Width Between Runways 38" Inside-Inside, 78" Outside-Outside 37 5/8" Inside-Inside, 75" Outside-Outside
Runway Gauge Steel 6 (1/4") 6 (1/4")
Column Cross Section 6 5/32"L x3 3/8"W 6 5/32"L x3 3/8"W

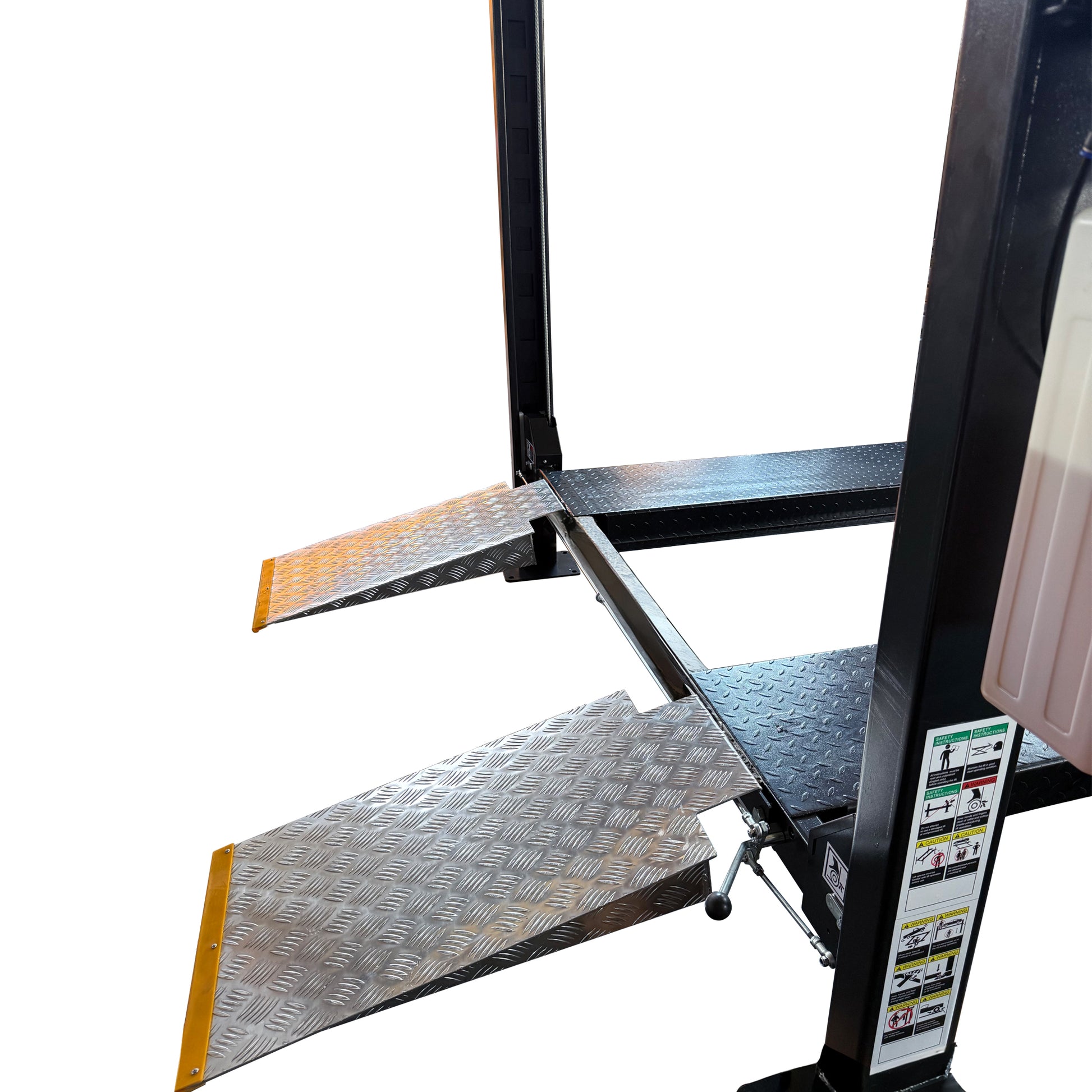

Removable Approach Ramps Size 36 13/16"L x 19 1/2"W 36 13/16"L x 19 1/2"W
Lock Positions 11 Positions （Clearance Under Runway)
  • 20 6/9"
  • 42 1/2"
  • 46 1/2"
  • 50 3/8"
  • 54 3/8"
  • 58 1/4"
  • 62 1/4"
  • 66 1/8"
  • 70 1/8"
  • 74"
  • 77"
  • 81 7/8"
 11 Positions （Clearance Under Runway)
  • 20 6/9"
  • 42 1/2"
  • 46 1/2"
  • 50 3/8"
  • 54 3/8"
  • 58 1/4"
  • 62 1/4"
  • 66 1/8"
  • 70 1/8"
  • 74"
  • 77"
  • 81 7/8"
Lifting Time 50 seconds 50 seconds
Motor 110V Single Phase 1.5HP 10A (recommend a 30A breaker) 110V Single Phase 1.5HP 10A (recommend a 30A breaker)
Powercord 8 ft with plug 8 ft with plug
Hydraulic Oil 3-5 gallons AW32/AW46 (Not Included) 3-5 gallons AW32/AW46 (Not Included)
Concrete Thickness 4" 4"
Shipping Weight 2,000 LB 1,850 LB

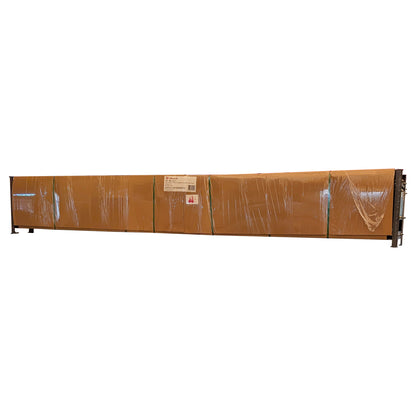

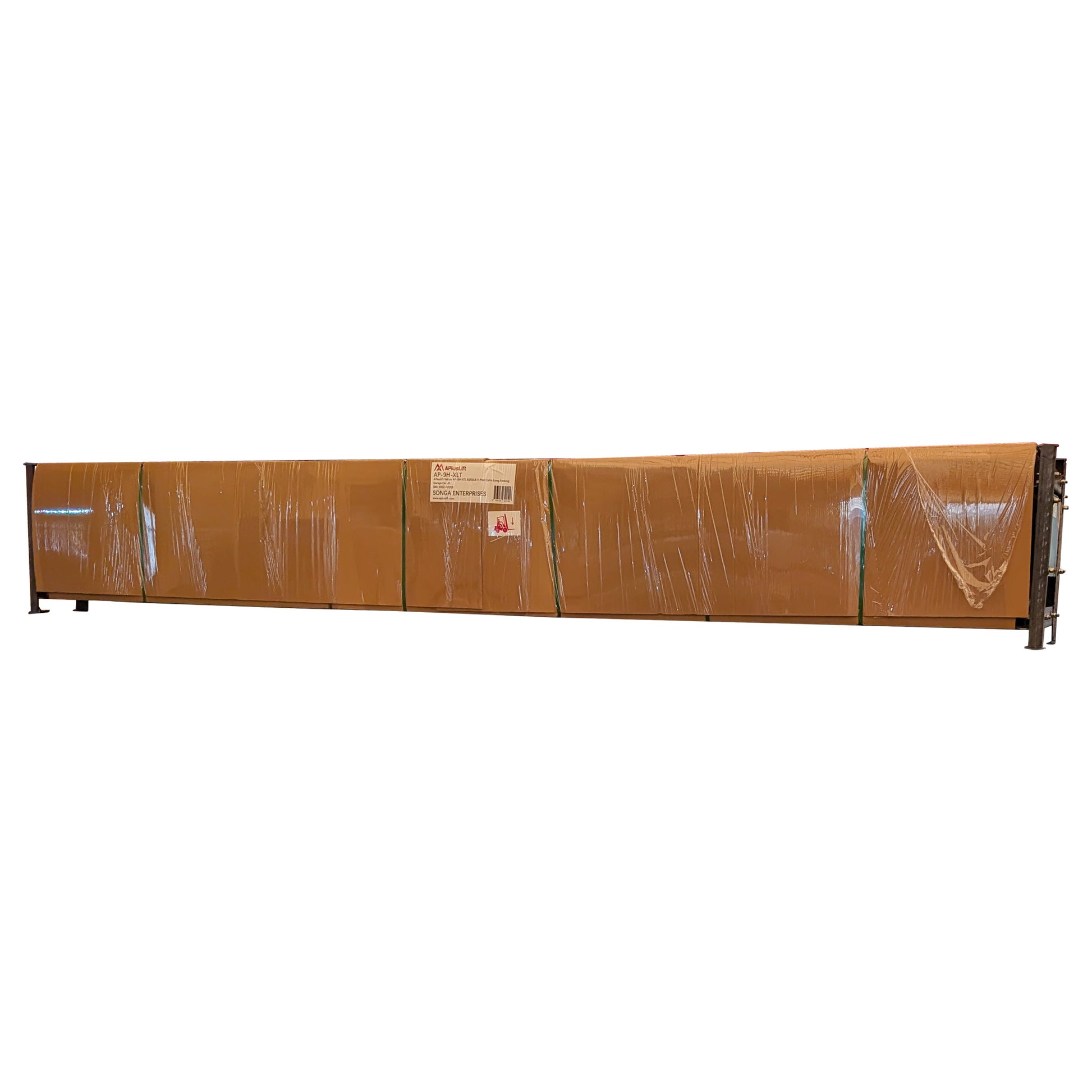

Shipping package size 194"L x 22"W x 30"H 174"L x 22"W x 30"H
Usage Parking/Storage/Service
Finish Powder Coated Finish with Superior Corrosion Resistance

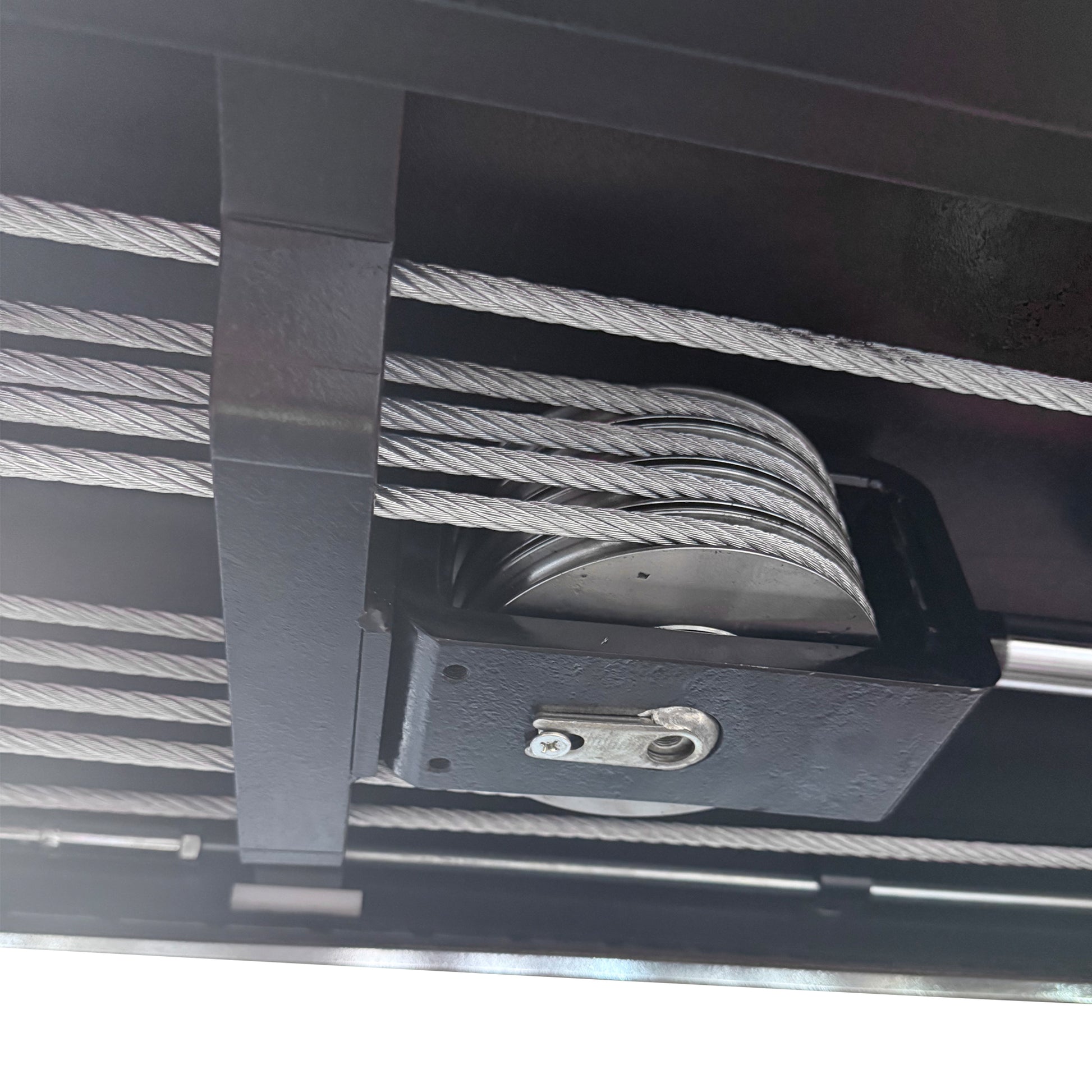

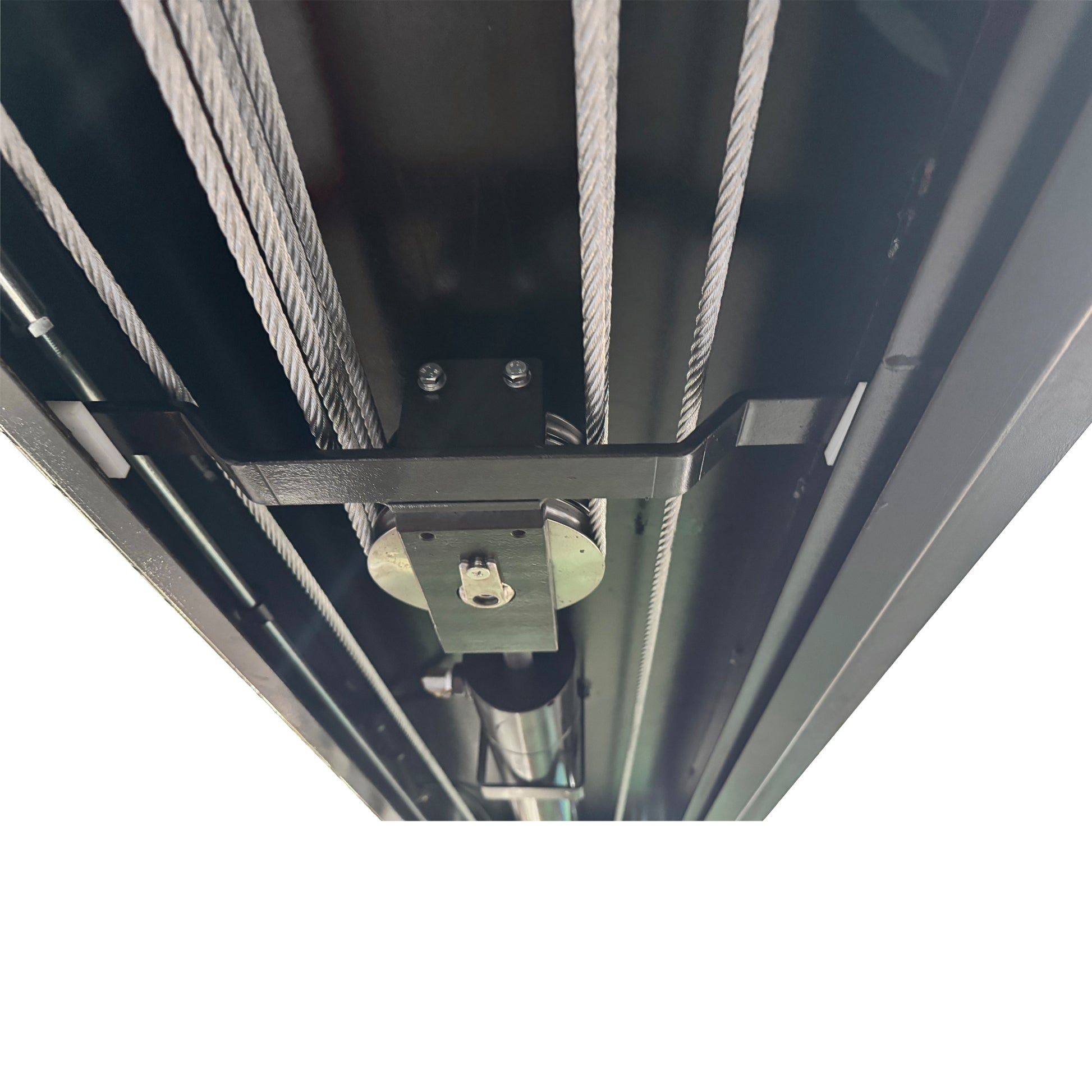

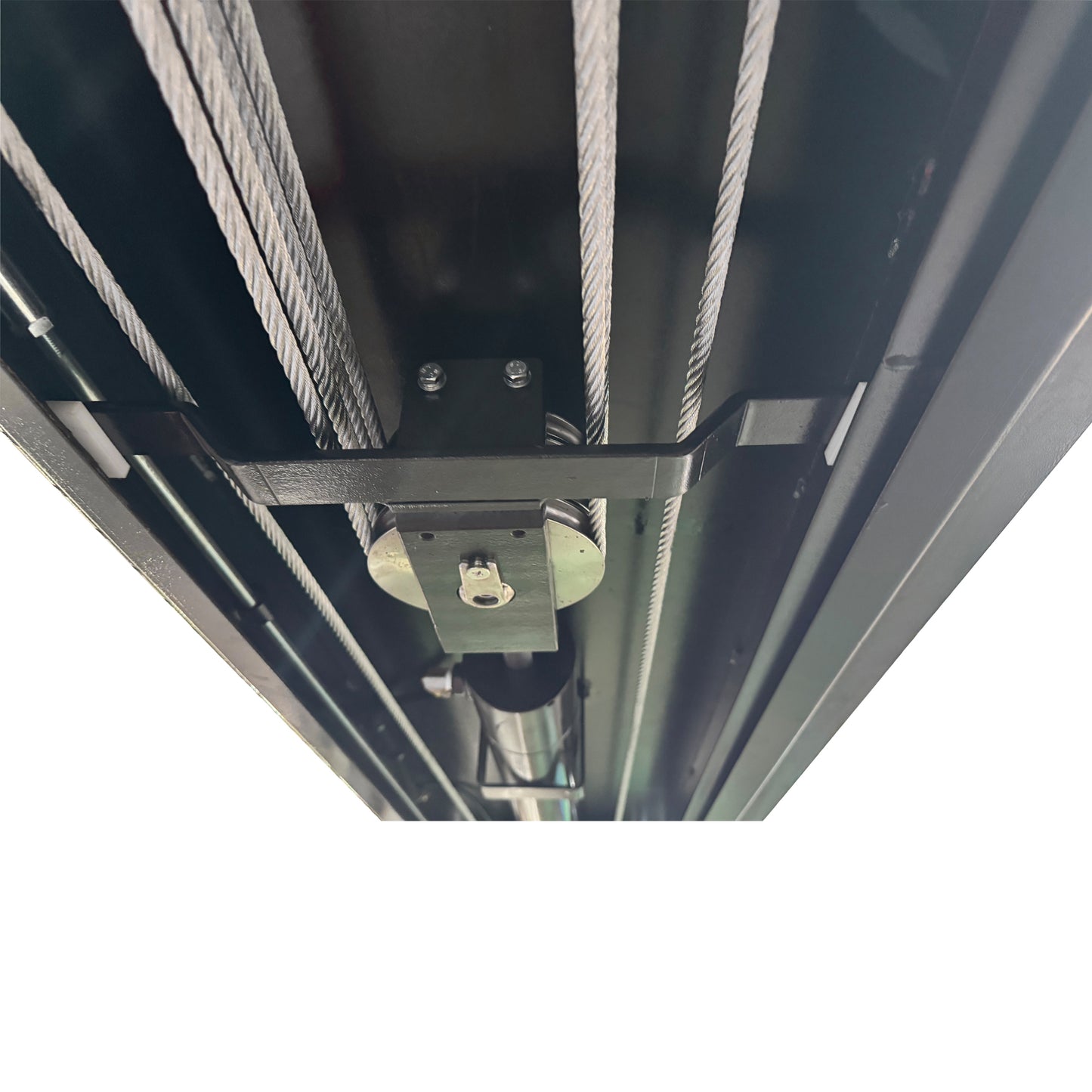

Cable Heavy duty 3/8" diameter cables that reduce high stress on synchronization process and increase cable life
Parts Included Caster Kit, Jack Tray, 4 Drip Trays, And 2 Removable Approach Ramps Included
Optional Jack ABJ-40 Air Operated Bridge Jack
