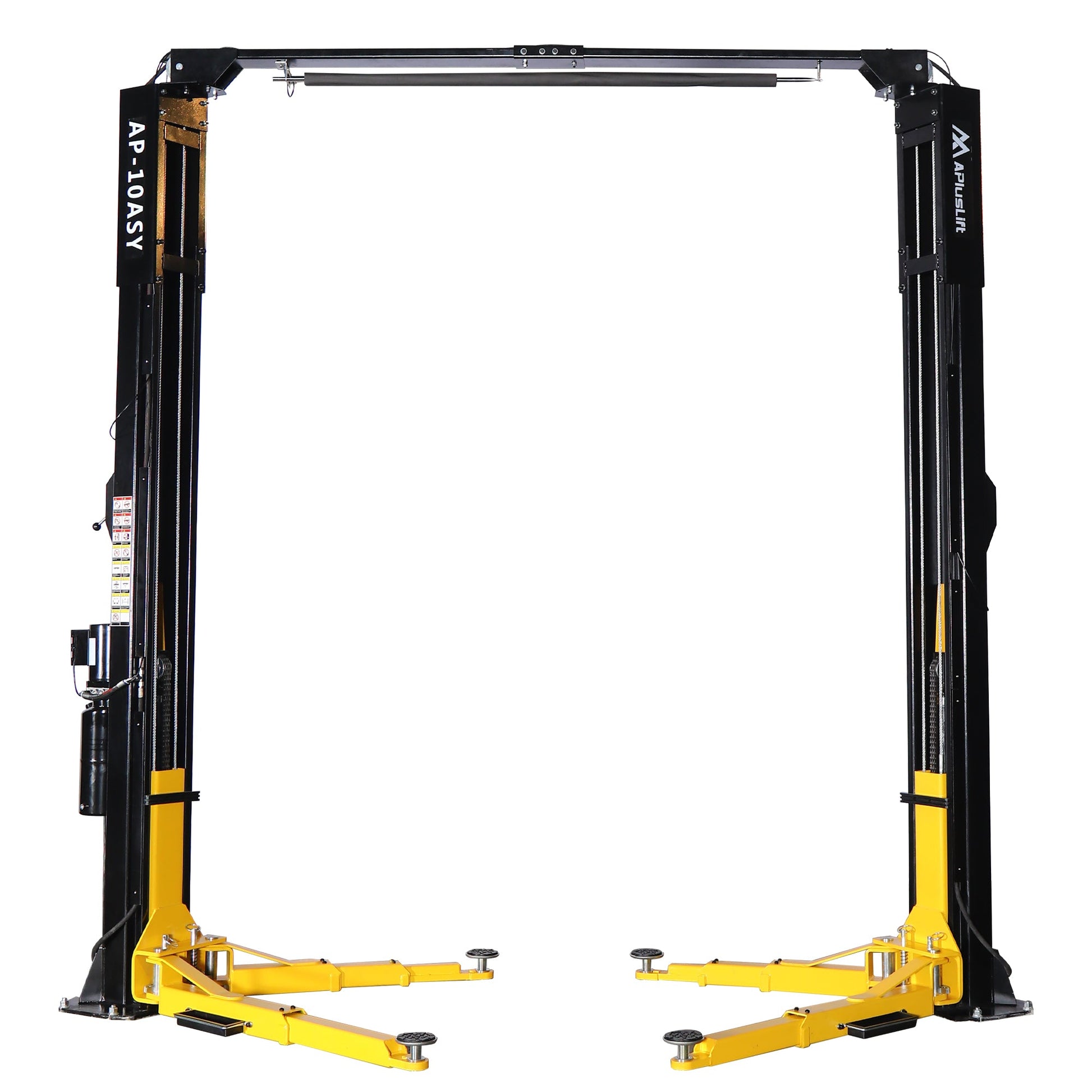

APlusLift 10,000LB 2-Post Overhead Asymmetric Single Release Car Lift with 3 Year Warranty - HW-10ASY
APlusLift 10,000LB 2-Post Overhead Asymmetric Single Release Car Lift with 3 Year Warranty - HW-10ASY
Regular price
$3,795.00 CAD
Regular price
$4,395.00 CAD
Sale price
$3,795.00 CAD
Unit price
/
per
Couldn't load pickup availability
All 2-Post Car Lifts
• Industry leading 3 YEAR WARRANTY

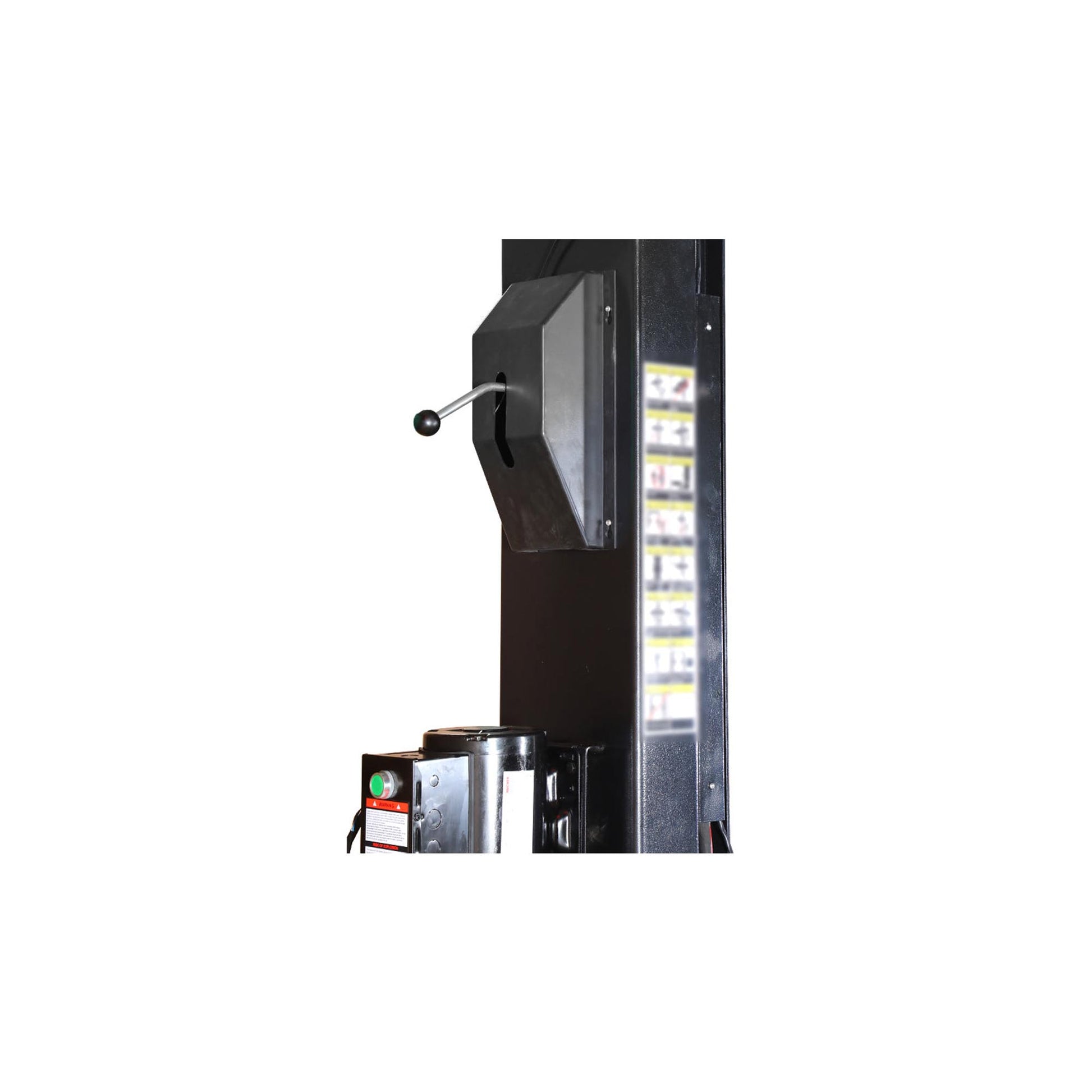

• Single Point Safety Lock Release System

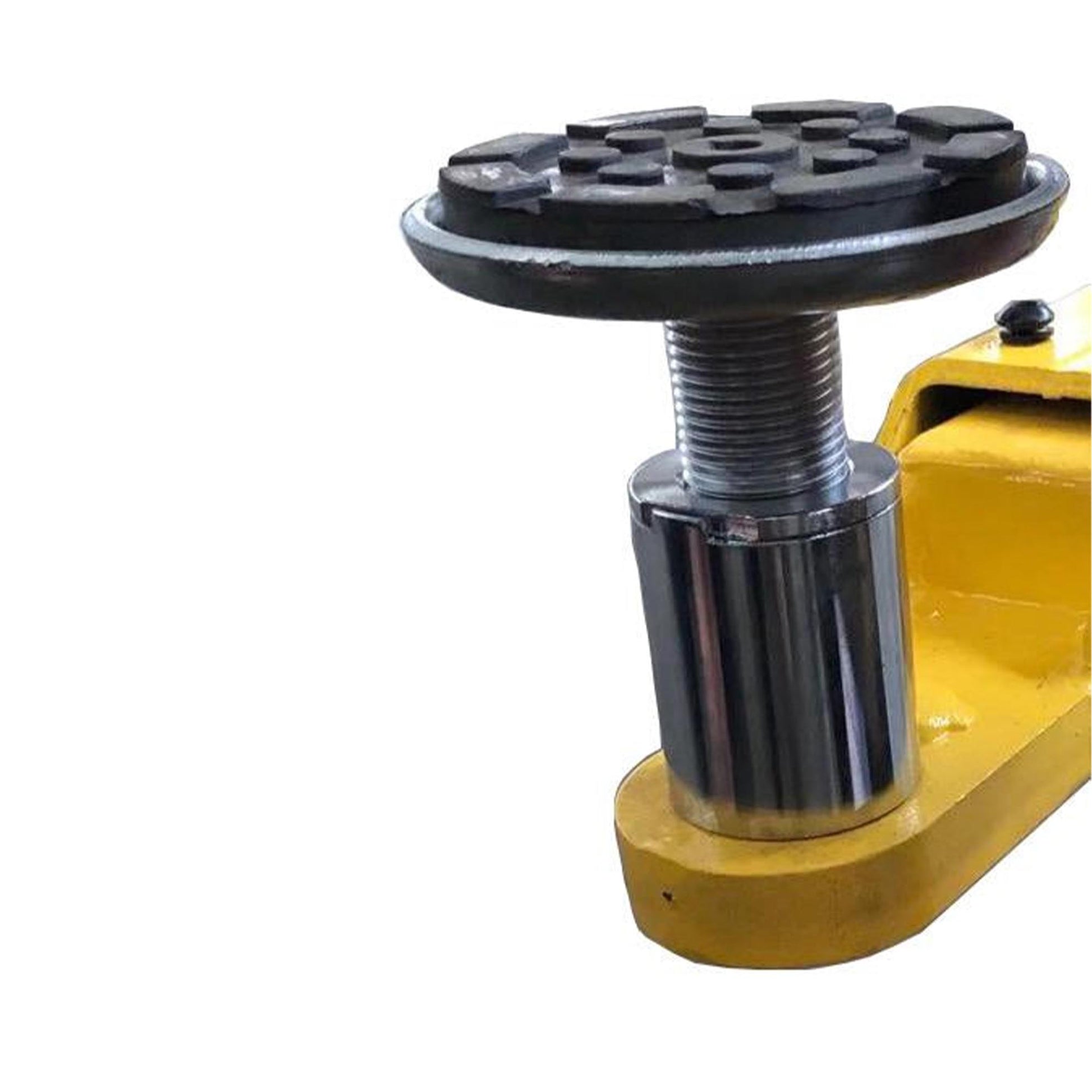

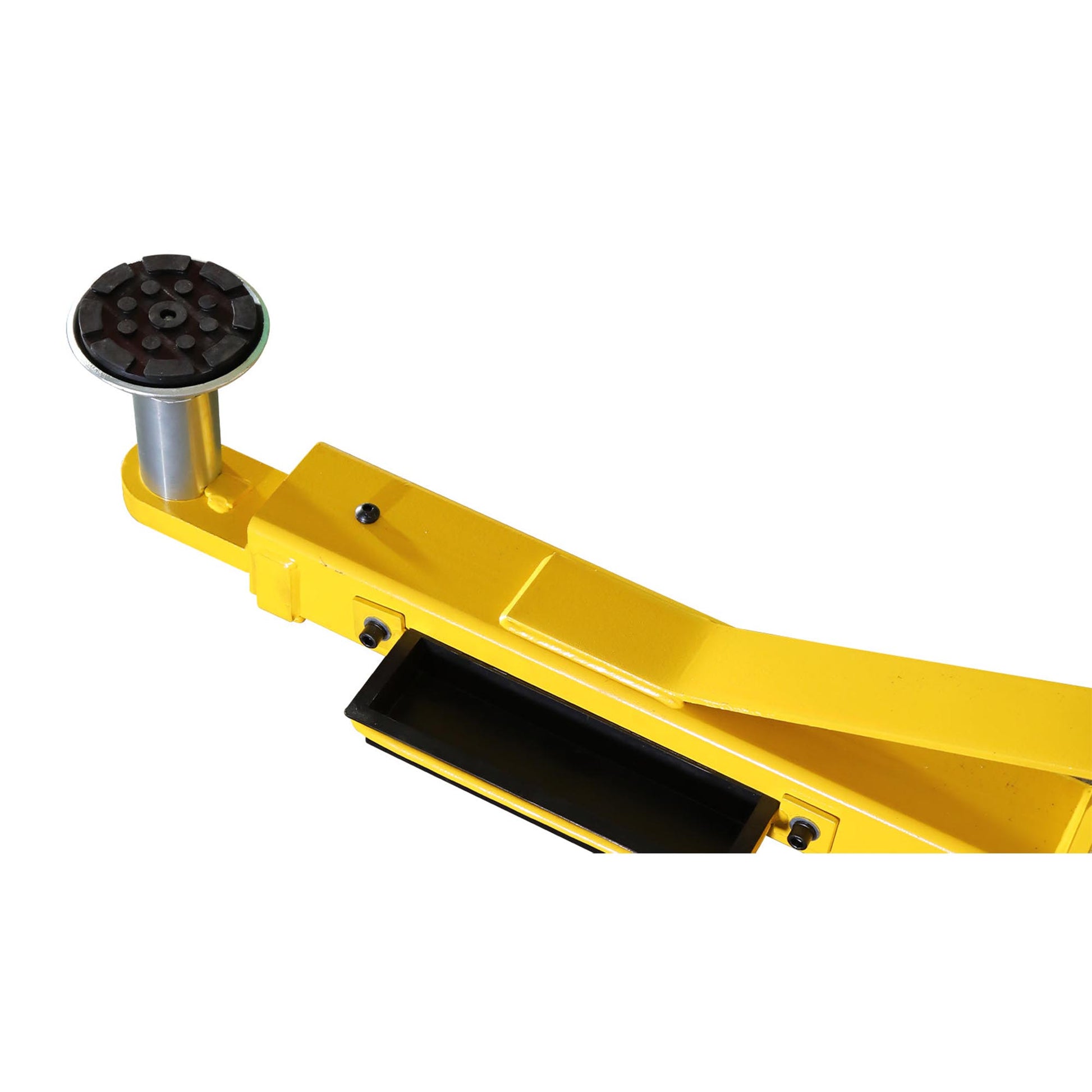

• Combo (Symmetrical and Asymmetrical) Arm Assembly with Adjustable Screw Pads!

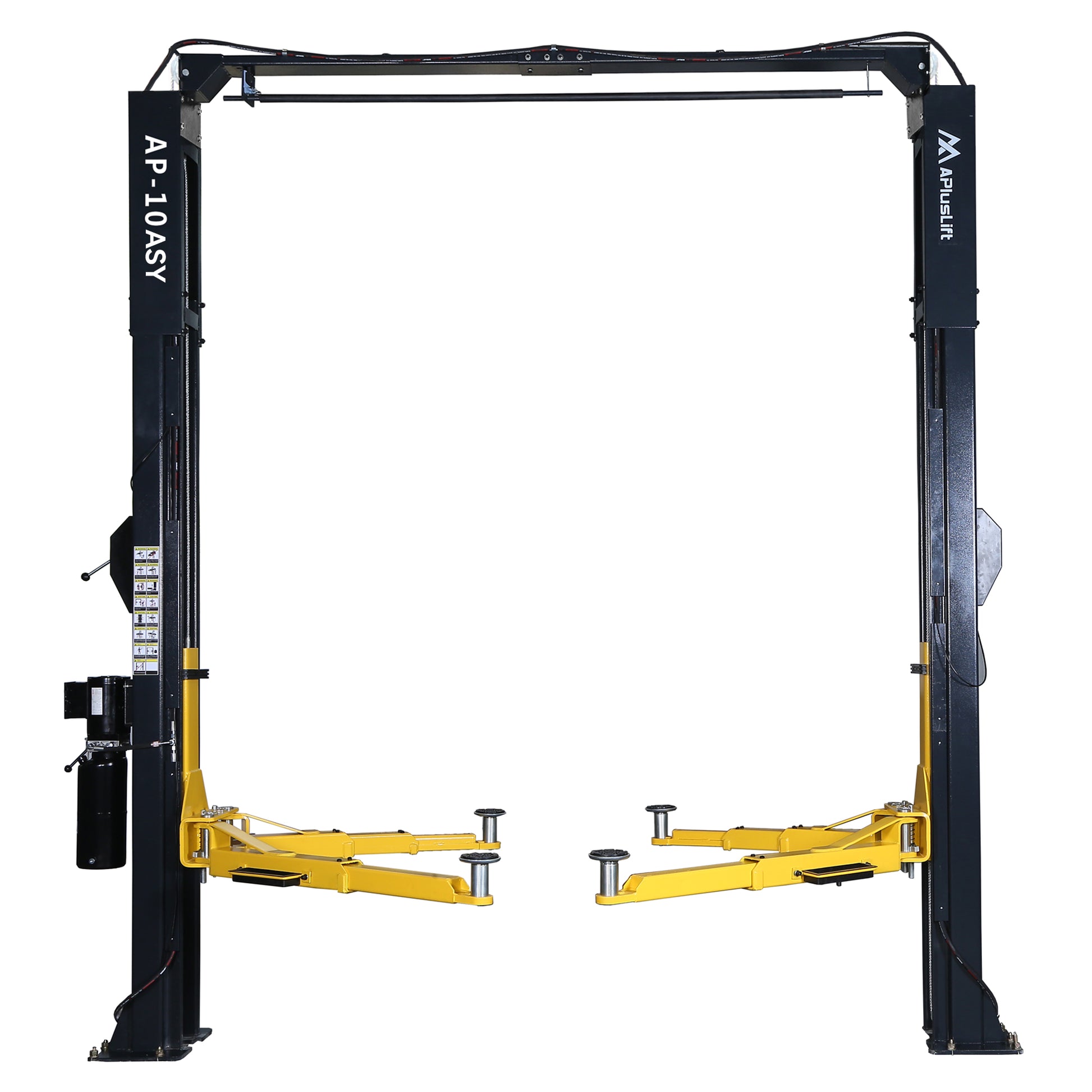

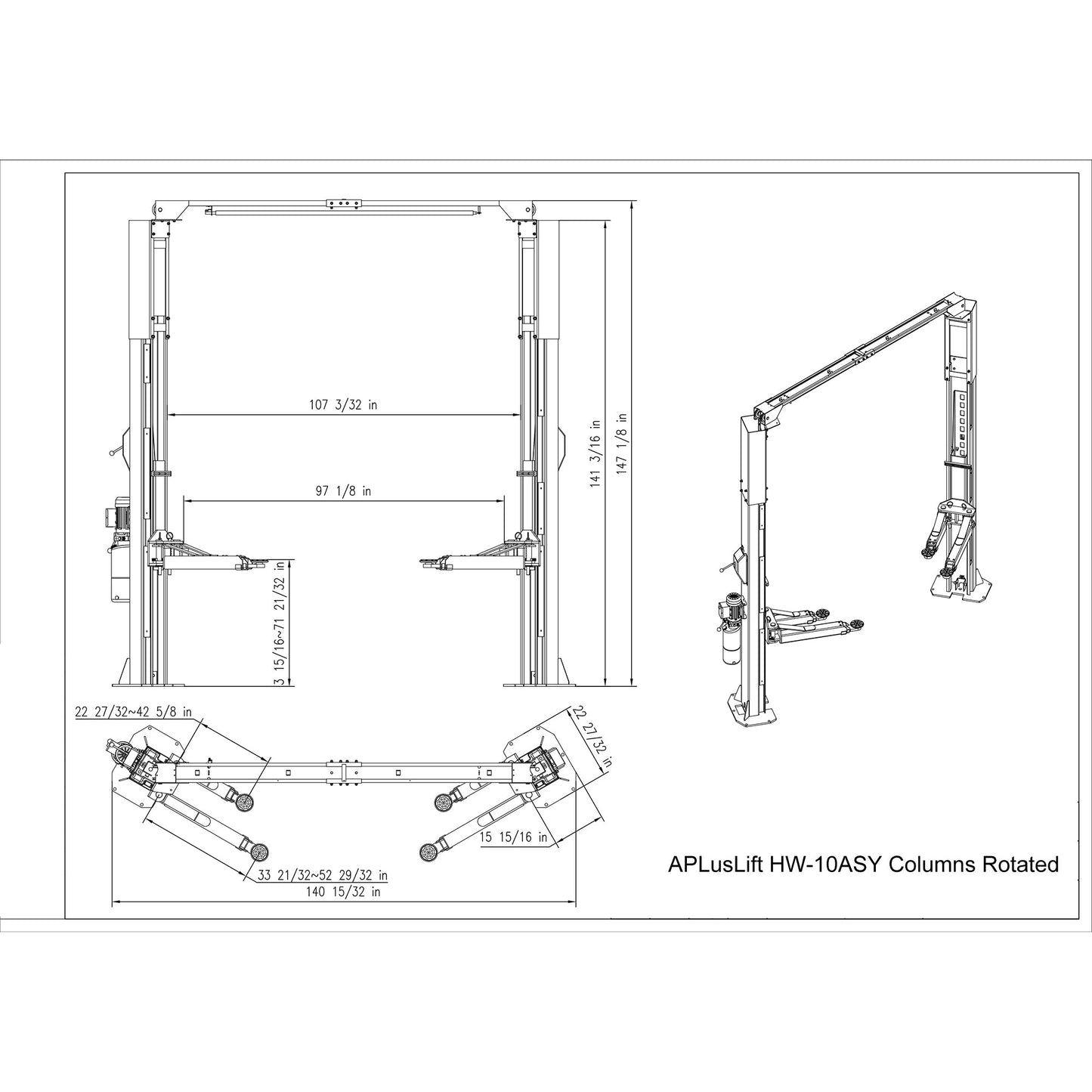

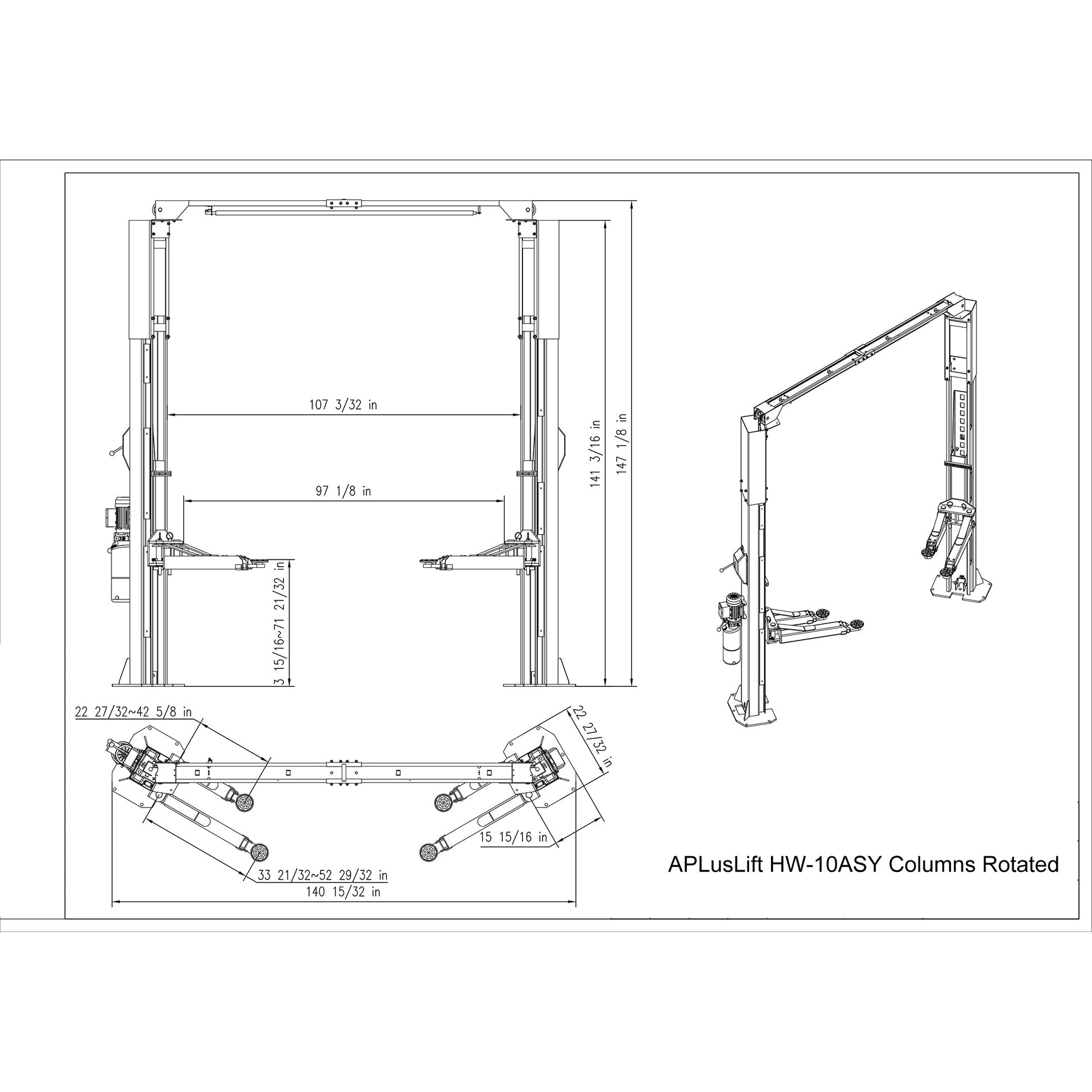

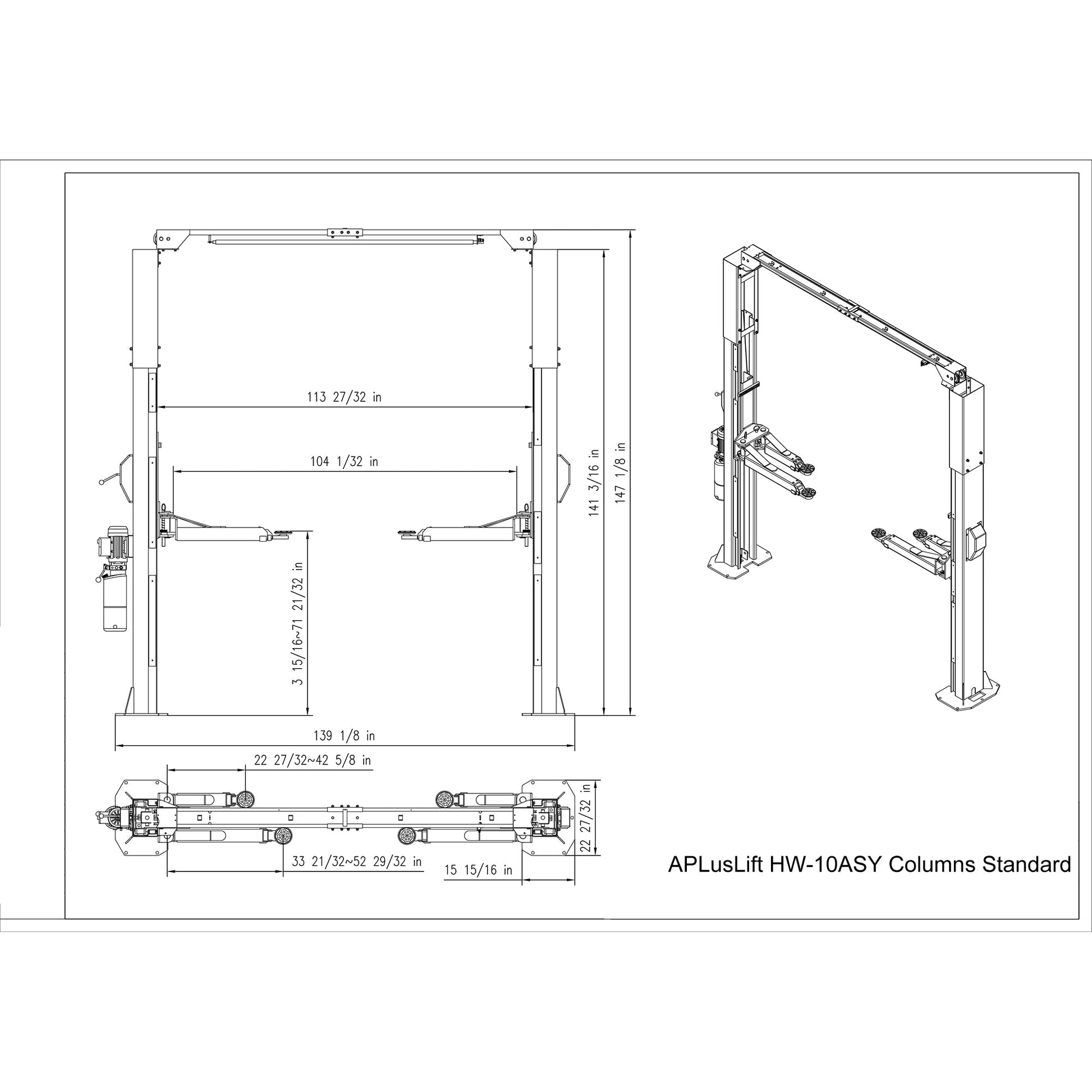

• Symmetrical Installation (identical to the AP-10SR model) or Asymmetrical Installation with the Columns Rotated 30 Degrees!
• CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
• One Set of 4" Tall Truck Adapters Included; 6'9" Lift Height Maximum with Truck Adapters
• All Robot Welded Structure with Durable Powder Coated Finish

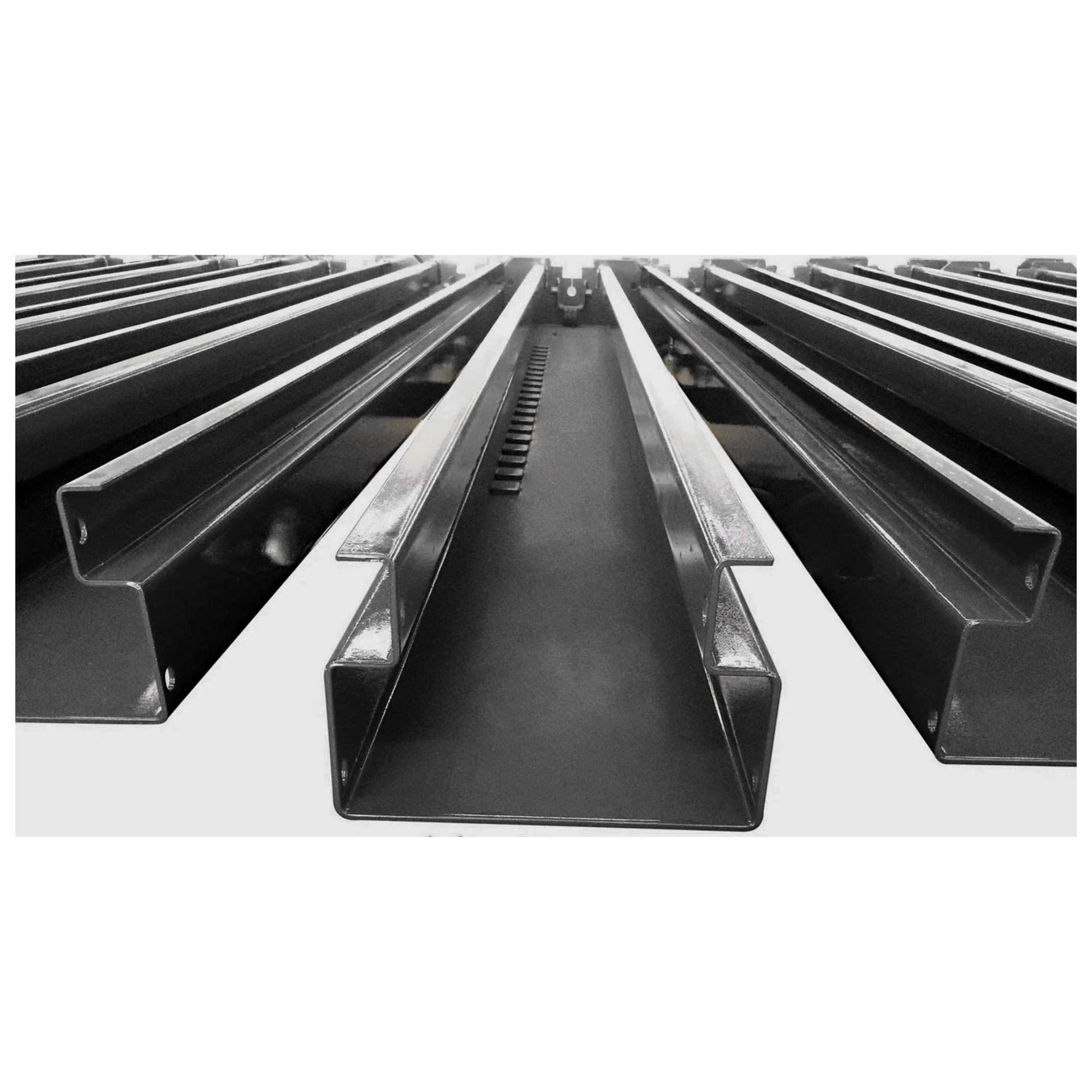

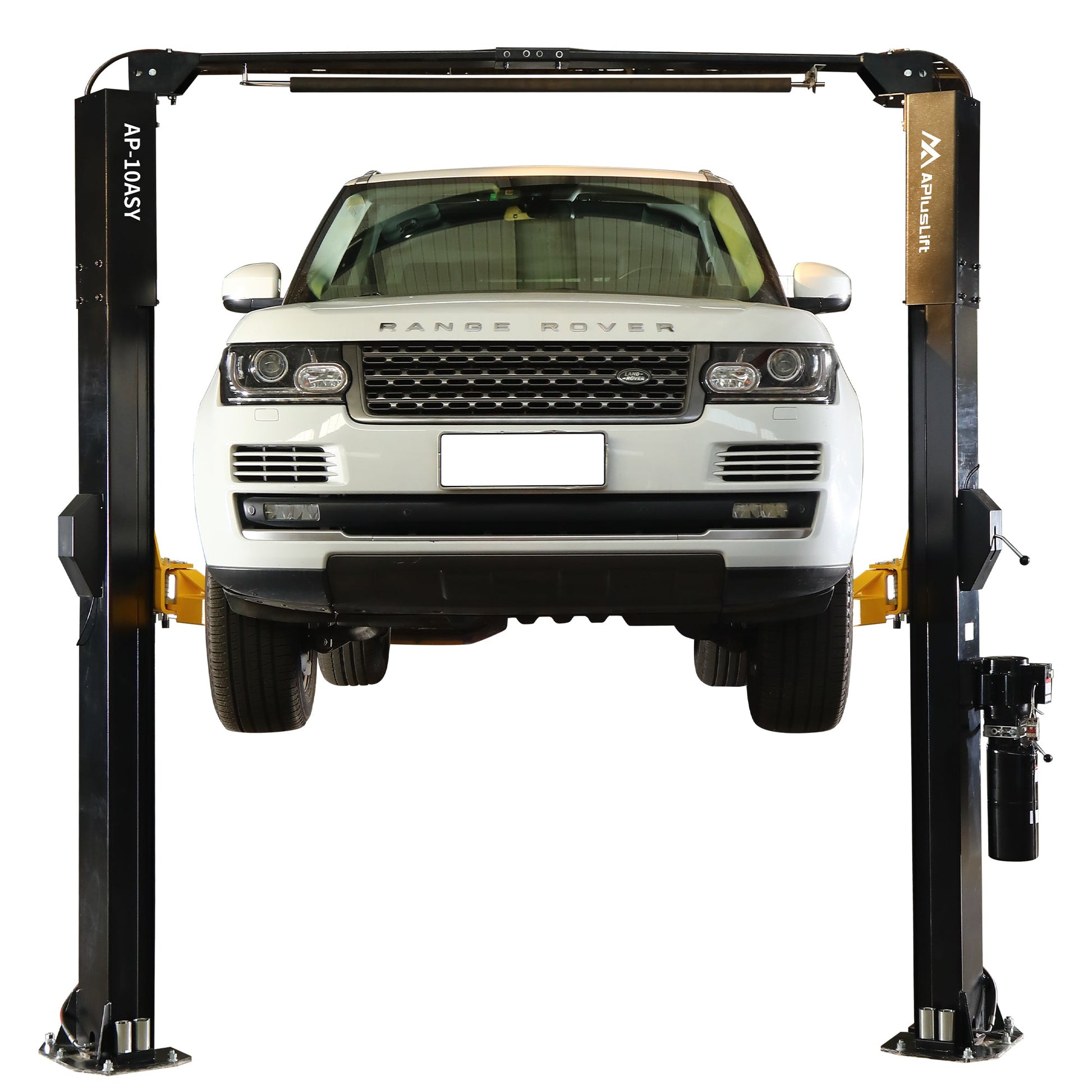

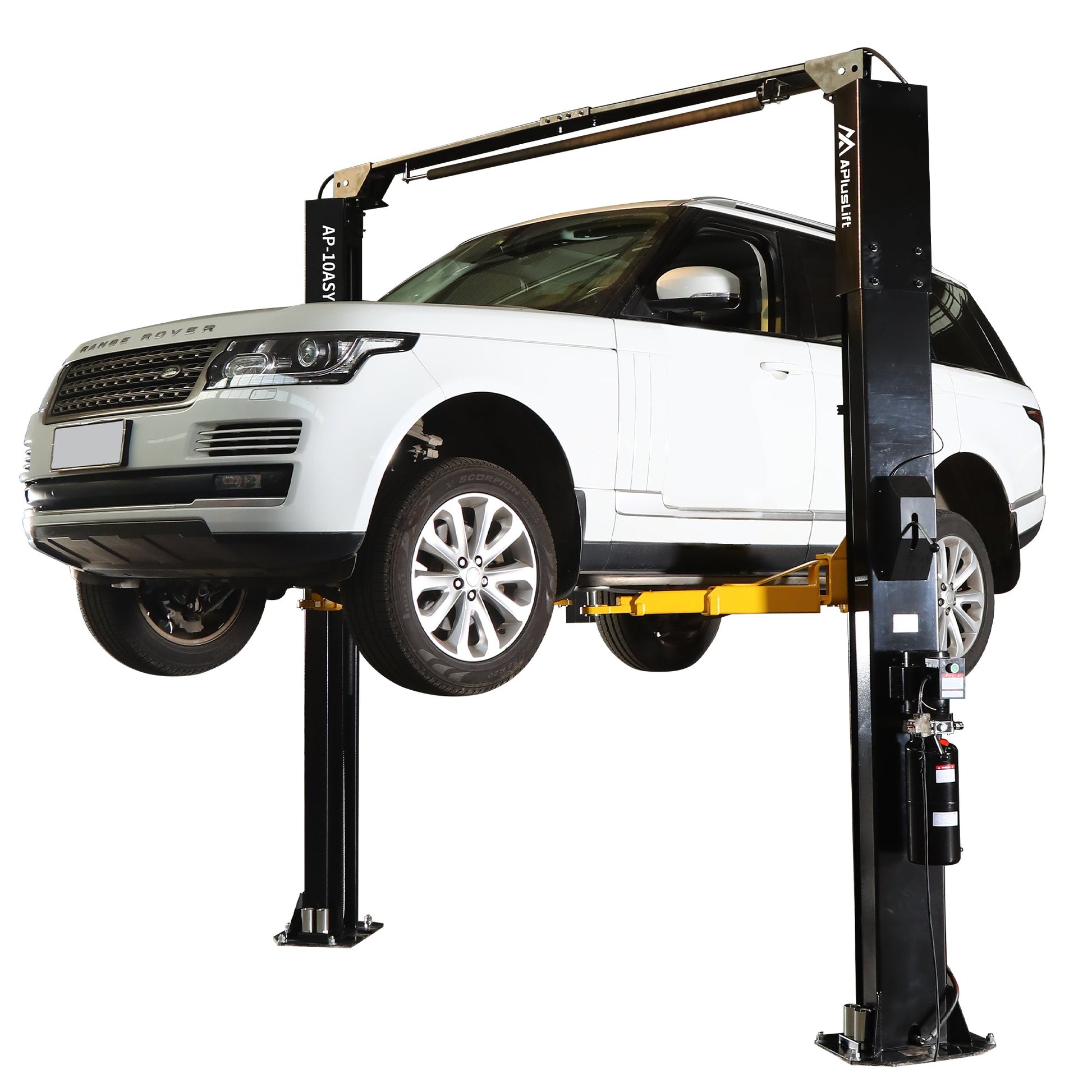

APlusLift HW-10ASY car lift (auto hoist) is one of the most affordable overhead Asymmetrical car lifts built with quality materials and good workmanship. It is an upgrade from the bestselling HW-10KOH-A model with an addition of single point lock release and an update from the AP-10SR model with an option to install the columns in a true asymmetrical way. That is, the columns can be installed symmetrically (identical to the AP-10SR model) or with a 30-degree rotation to maximize door opening and vehicle access. The lift has a strong double "S" column design to support 10,000 LB capacity.
We are proud to offer an industry leading 3 year warranty for all parts! We welcome suggestions to improve our products and service!
Free shipping to most Canadian areas with on-site forklift (or similar), or free pickup at a nearby terminal. Remote areas incur additional fees. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $300 CAD Discount): Calgary (AB) and Toronto (ON).
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications |
|||||||||
| Model | HW-10ASY (This Model) |
HW-10KOH-A (for Comparison) |
|||||||
| Manual | HW-10ASY Manual | HW-10KOH-A Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Column Installation | Symmetric or Asymmetric | Symmetric | |||||||
| Arm Arrangement | Symmetric or Asymmetric (combo) | Symmetric or Asymmetric (combo) | |||||||
| Lock Release | Single Point Release | Double Point Release | |||||||
| Warranty | 3 Years (36 months) | 3 Years (36 months) | |||||||
| Lifting Capacity | 10,000 LB | 10,000 LB | |||||||
| Overall Height | 141 3/16" | 143 3/16" | |||||||
| Overall Width | 139 1/8" (standard) 140 15/32" (post rotated) |
134 5/16" | |||||||
| Maximum Lift height with Truck Adapters | 81" | 81" | |||||||
| Maximum Lift height without Truck Adapters | 75" | 75" | |||||||
| Maximum lift height from bottom of the arm to the ground | 71" | 71" | |||||||
| Minimum Height of Adjustable Pads from Ground | 4" | 4" | |||||||
| Drive Through Width (Carriage to Carriage) | 104" (symmetric) 97" (asymmetric) |
100" | |||||||
| Column to Column Width | 113" (symmetric) 107" (asymmetric) |
109" | |||||||
| Column Cross Section | 11"L x 7"W | 11"L x 7"W | |||||||
| Driving Mode | Dual hydraulic cylinders, chain drive | Dual hydraulic cylinders, chain drive | |||||||

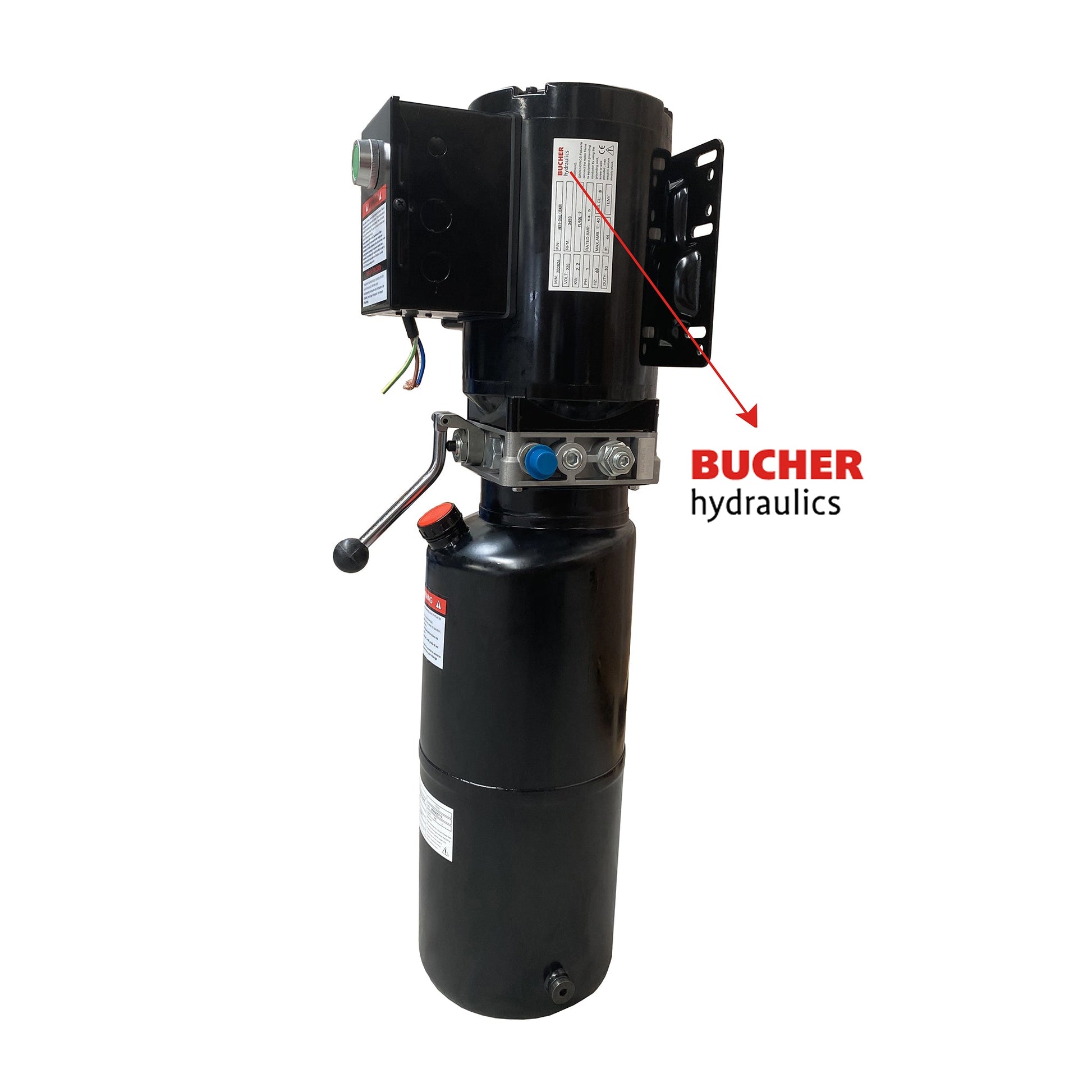

| Motor | 220V Single Phase 3HP 10A (recommend a 30A breaker) | 220V Single Phase 3HP 10A (recommend a 30A breaker) | |||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (not included) | 3-5 gallons AW32/AW46 (not included) | |||||||
| Time to full rise | 50 seconds | 50 seconds | |||||||
| Shipping Weight | 1470 LB and 120 LB | 1470 LB | |||||||

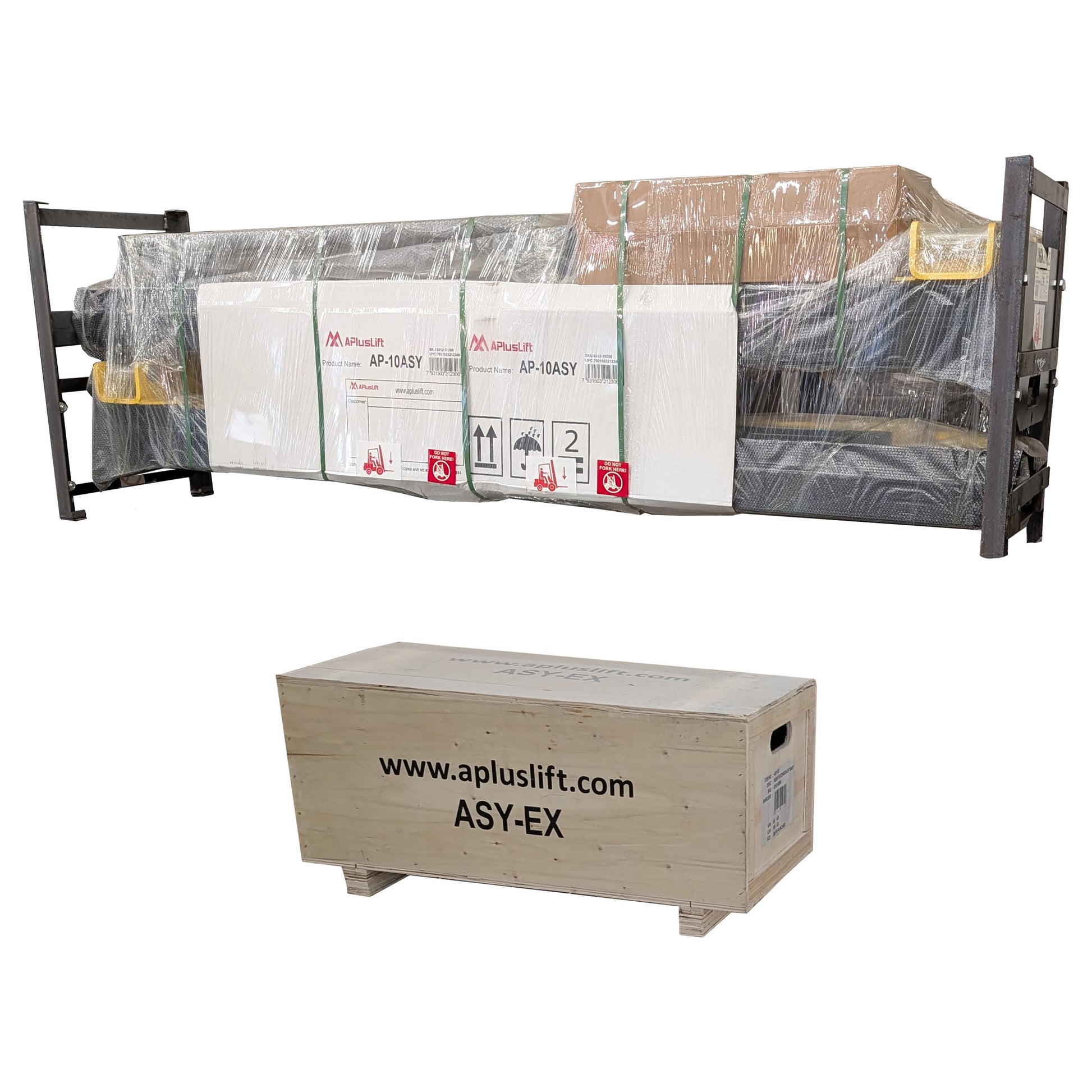

| Shipping package size |
|
113"L x 22"W x 40" H | |||||||
| Concrete Requirement | 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below) | ||||||||
| Parts Included |
|
||||||||

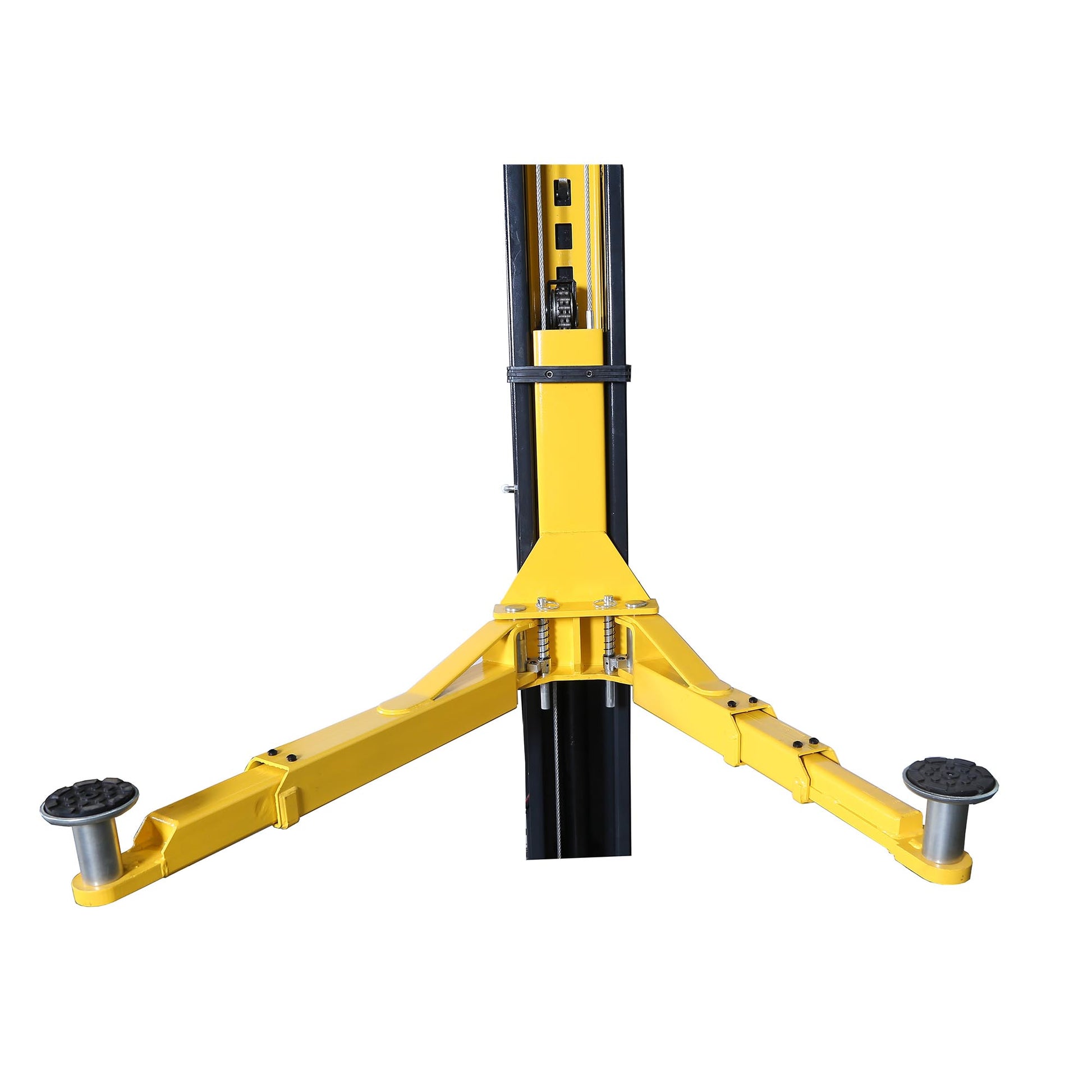

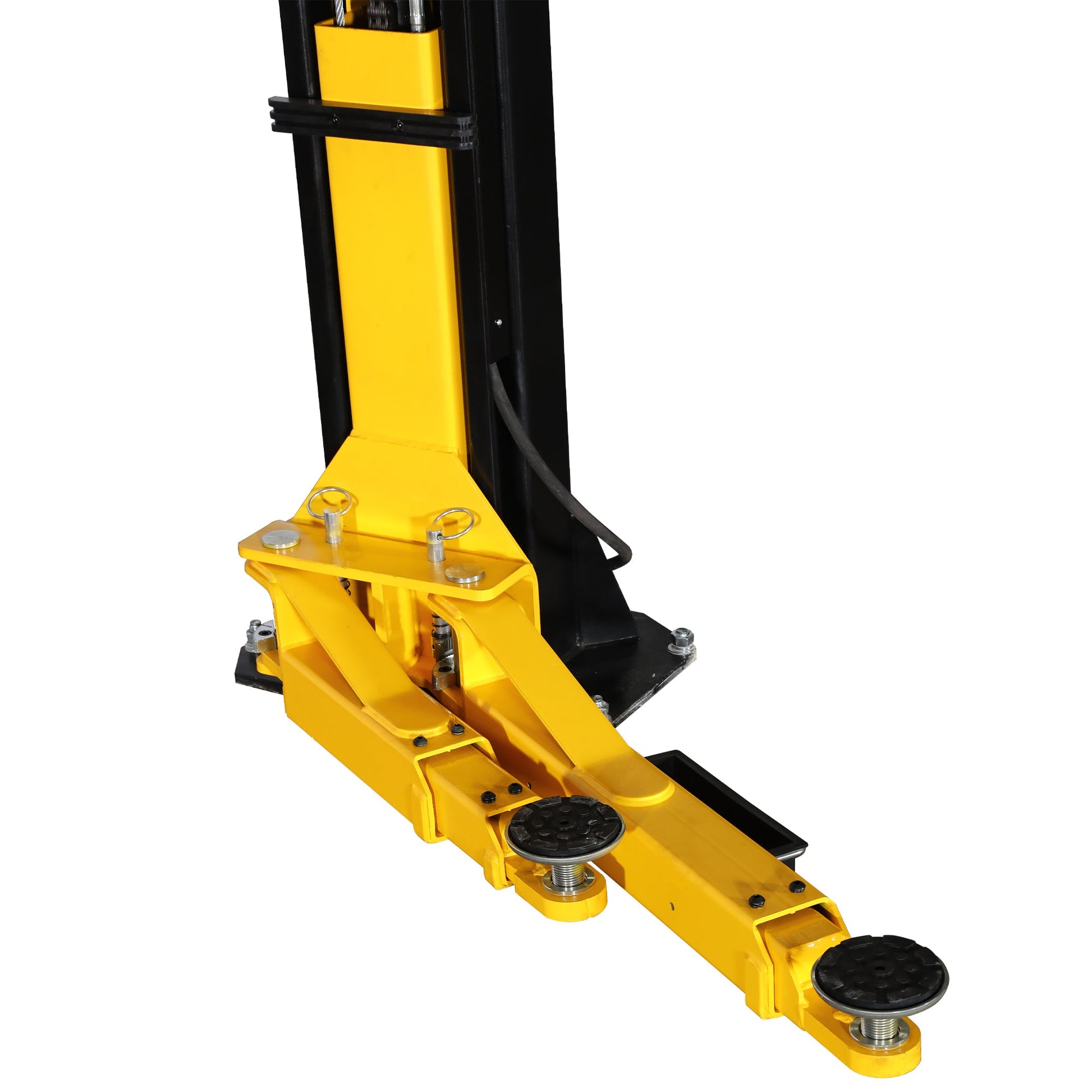

| Arm Assembly | Combo (symmetrical and asymmetrical) Arm Assembly | ||||||||

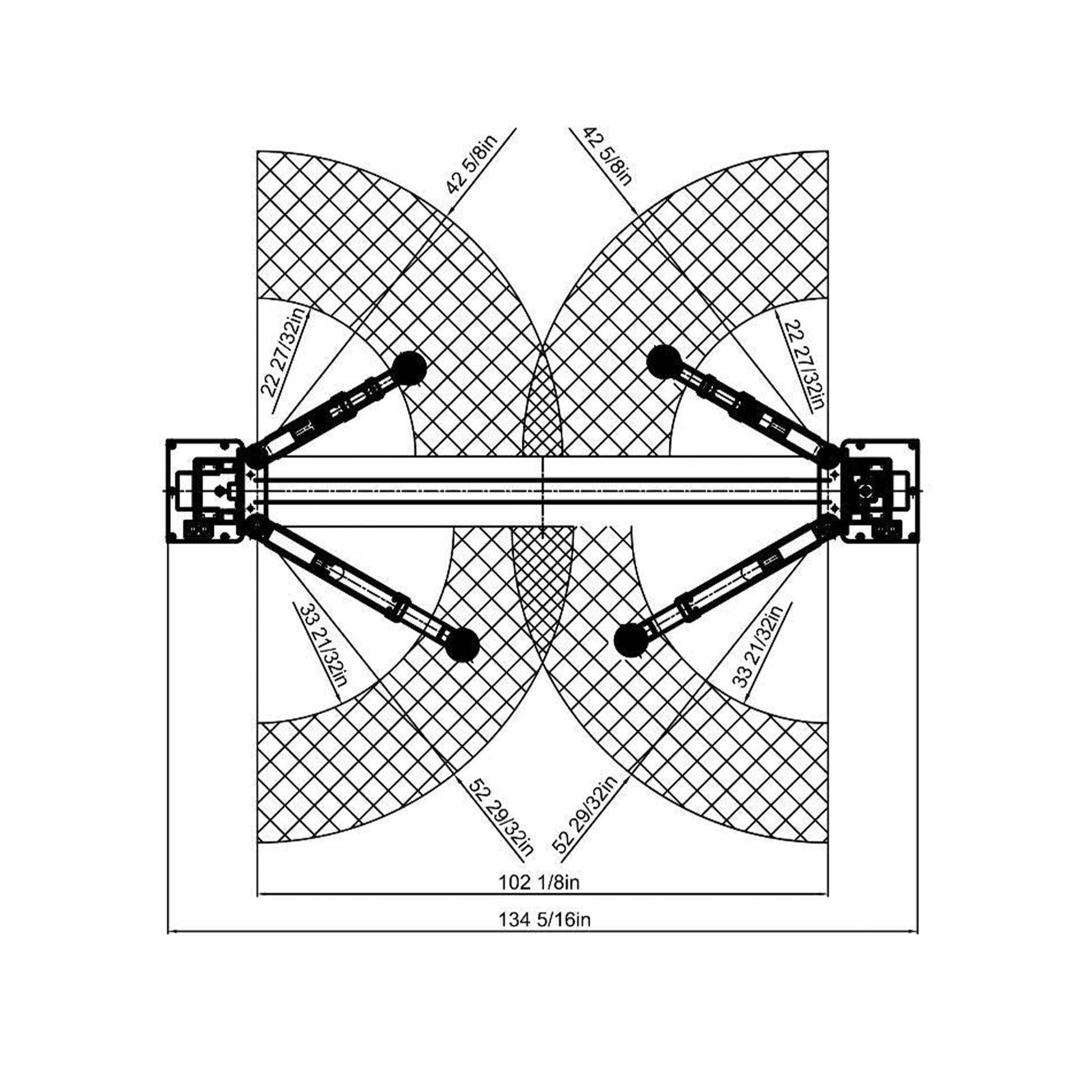

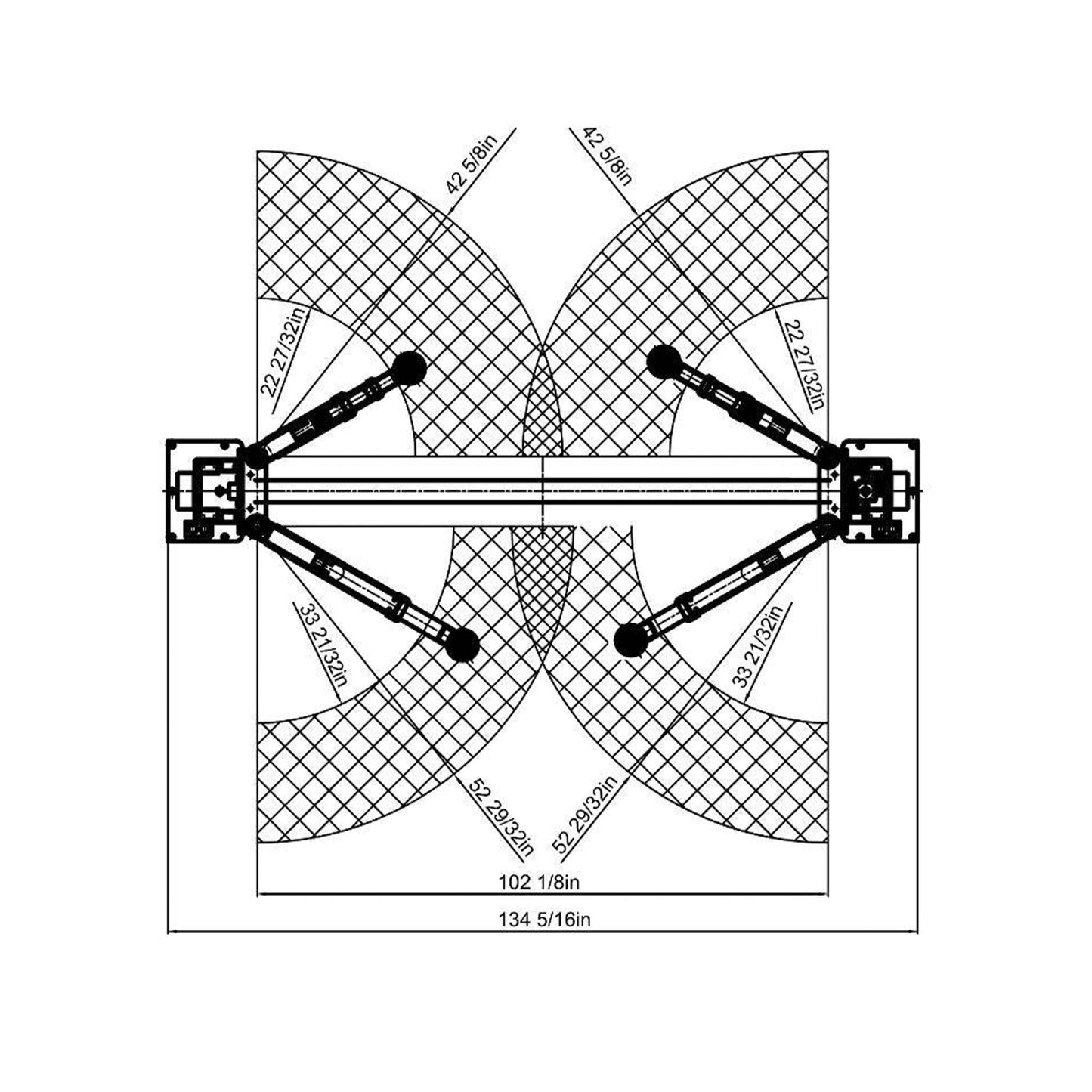

| Front Arms | Straight Front 3 Stage reach from 22 7/8" to 42 5/8" | ||||||||
| Back Arms | Straight Rear 2 Stage reach from 33 5/8" to 52 7/8" | ||||||||
| Column Steel Thickness | 13/64" | ||||||||
| Carriage Steel Thickness | 15/64" | ||||||||
| Carriage Yoke Thickness | 9/16" | ||||||||
| Arm Steel Thickness | 15/64" | ||||||||
| Base Plate Steel Thickness | 5/8" | ||||||||
| Model | HW-10ASY (This Model) |
HW-10KOH-A (for Comparison) |
|||||||
Features
- CE Certified Lift Structure and Hydraulic System
- Third party tested with a dynamic load capacity of 115%
- Third party tested with a static load capacity of 150%
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading

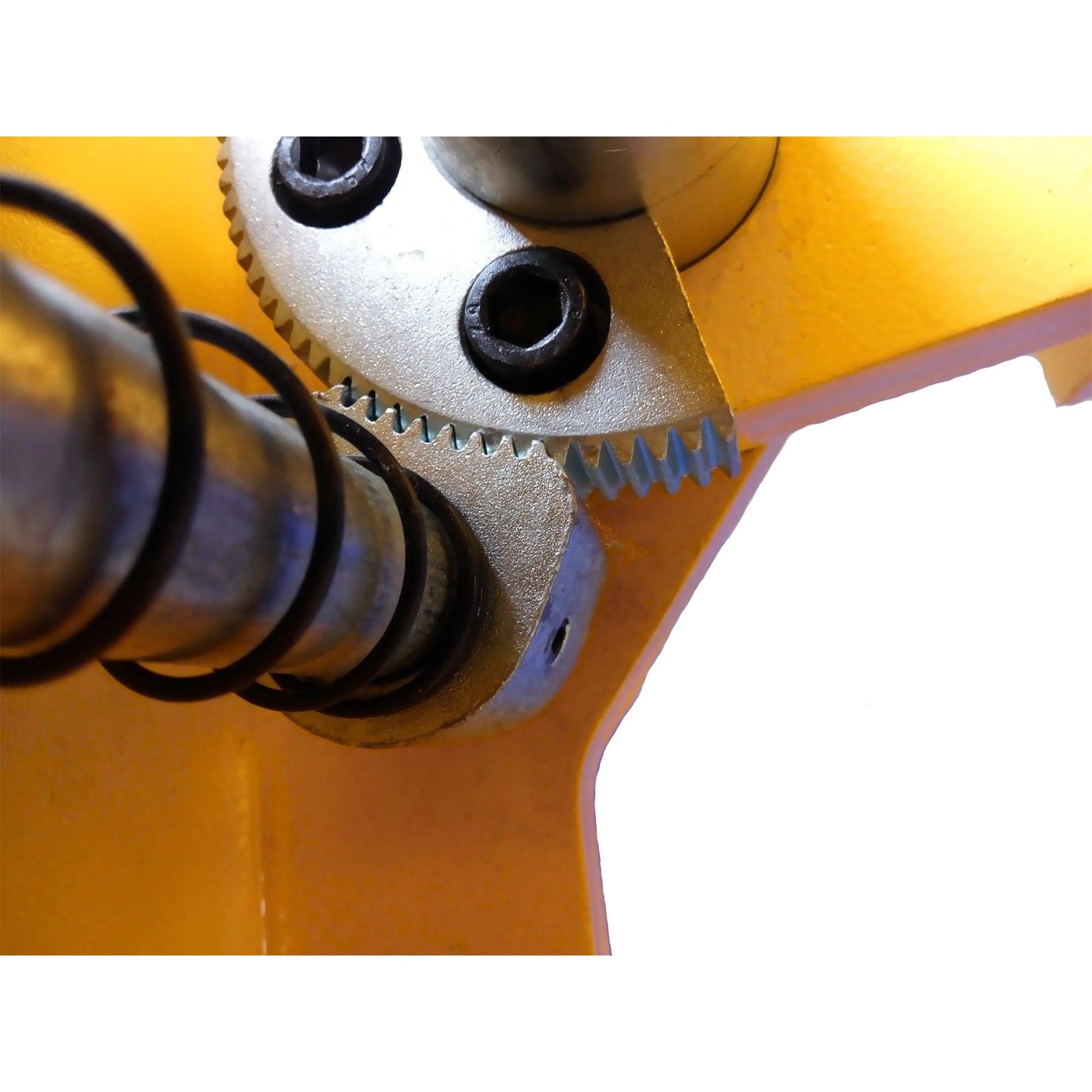

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
