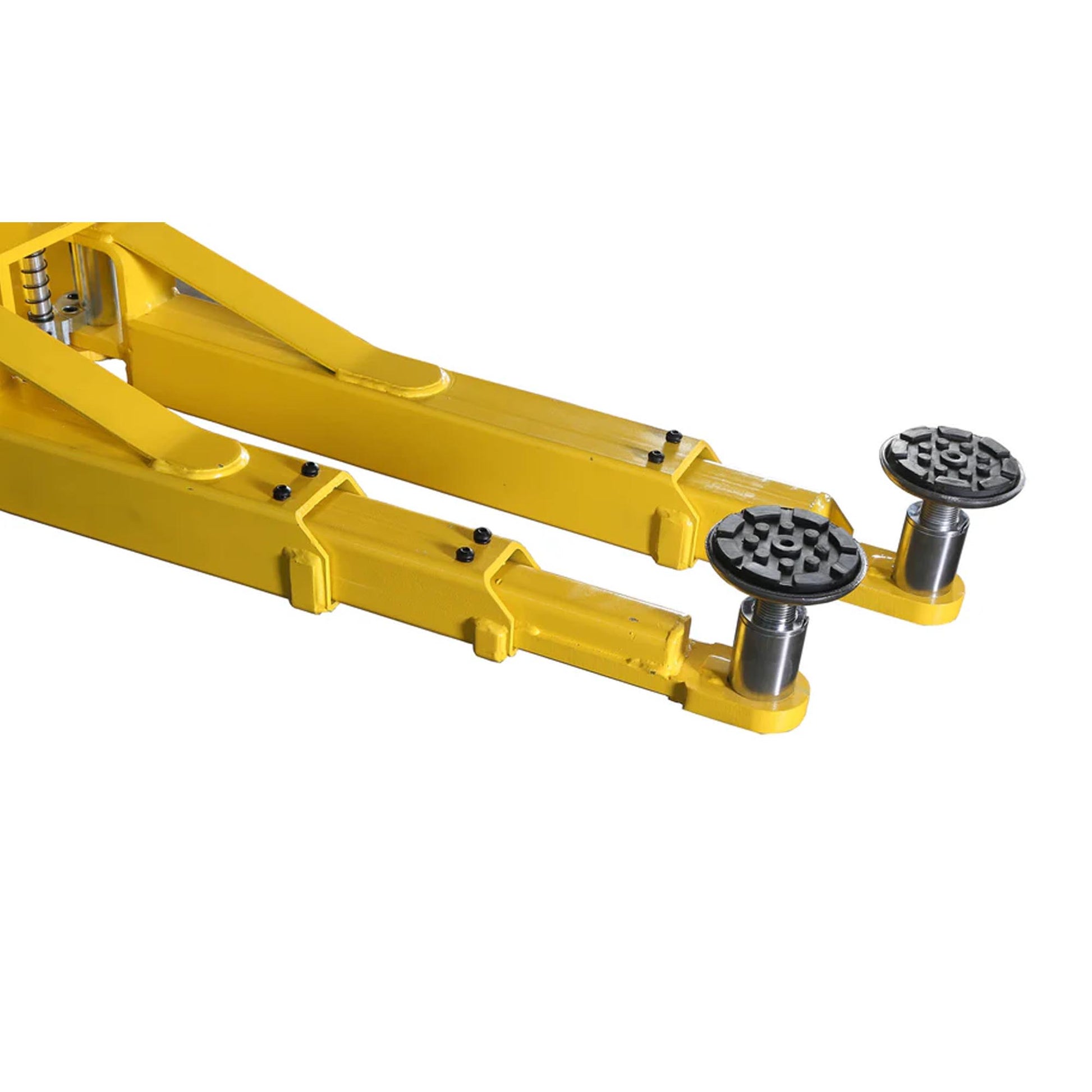

  • APlusLift HW-10KOH-A 10,000LB 2-Post Overhead Heavy Duty Car Lift - Arms
  • APlusLift HW-10KOH-A 10,000LB 2-Post Overhead Heavy Duty Car Lift - Carriage an Arms

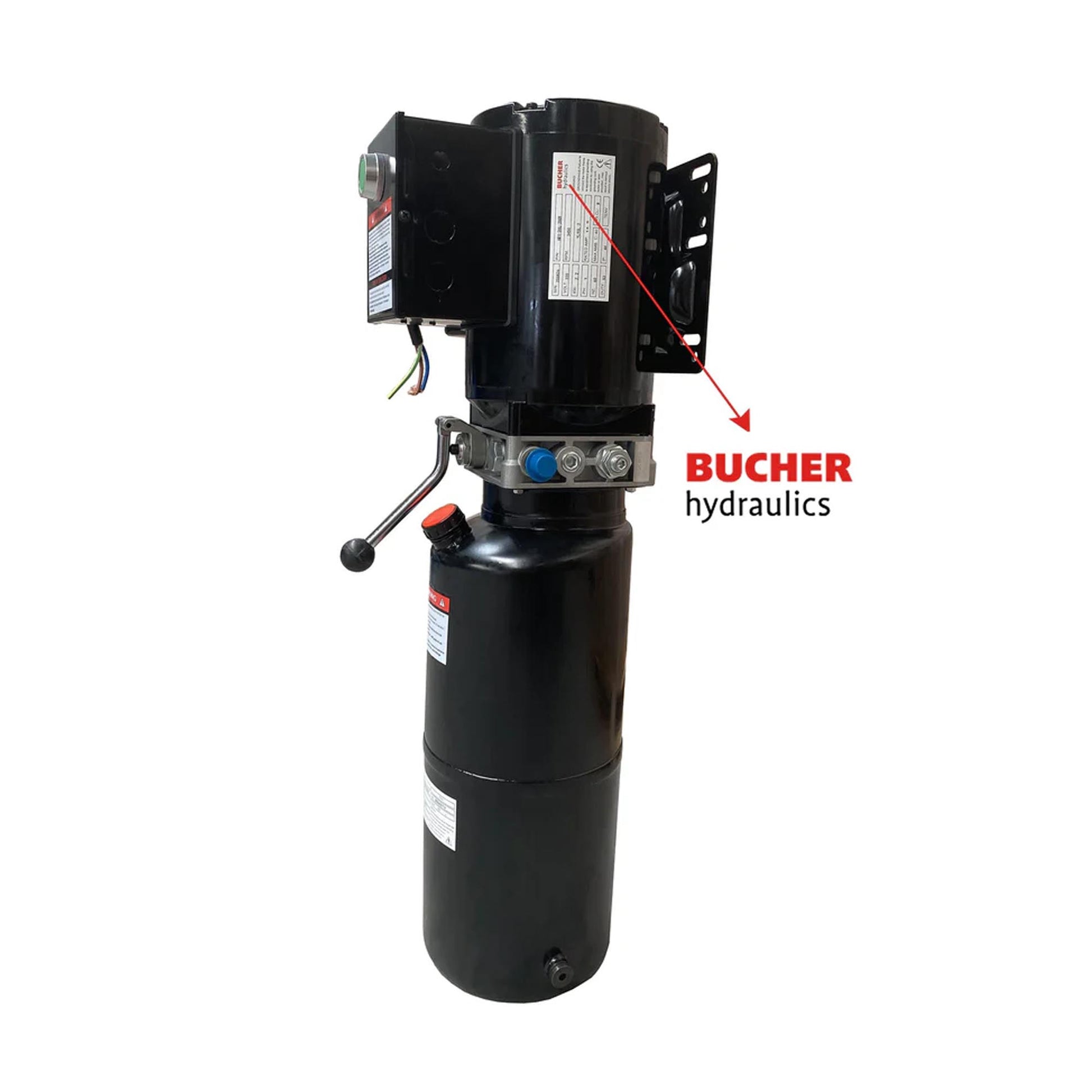

  • APlusLift HW-10KOH-A 10,000LB 2-Post Overhead Heavy Duty Car Lift - BUCHER Hydraulics

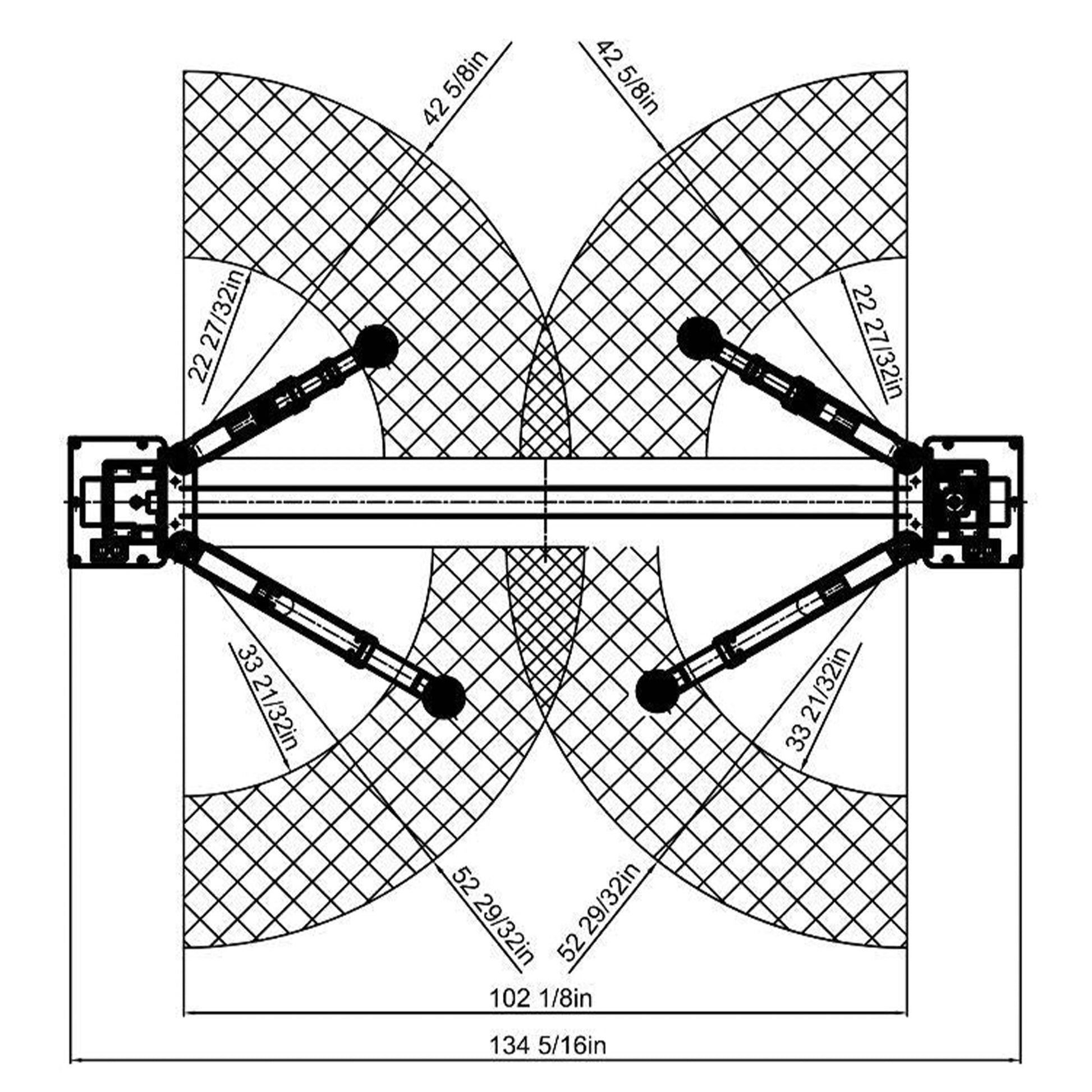

  • APlusLift HW-10KOH-A 10,000LB 2-Post Overhead Heavy Duty Car Lift - Diagram

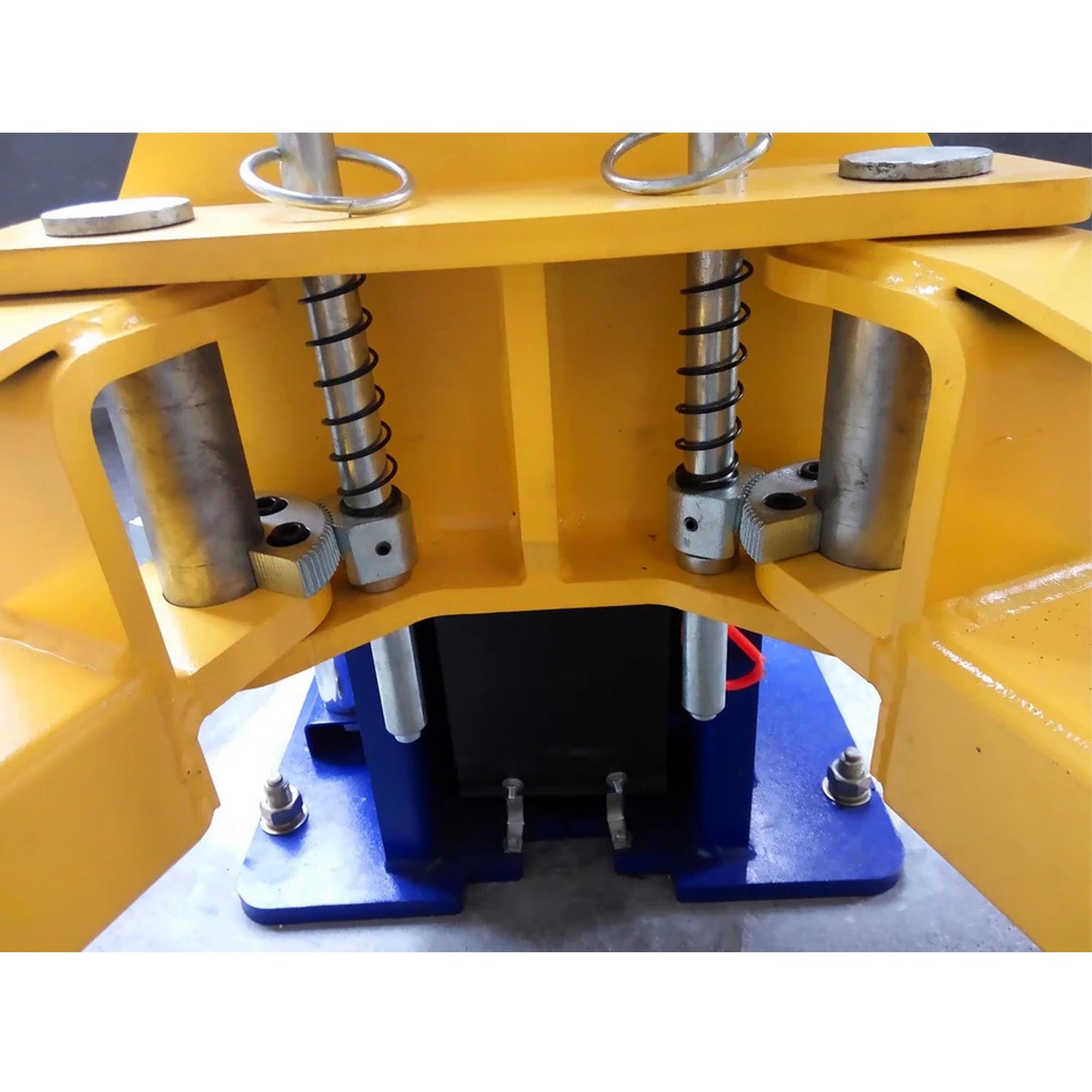

  • APlusLift HW-10KOH-A 10,000LB 2-Post Overhead Heavy Duty Car Lift - Carriage
  • APlusLift HW-10KOH-A 10,000LB 2-Post Overhead Heavy Duty Car Lift - Details
  • APlusLift HW-10KOH-A 10,000LB 2-Post Overhead Heavy Duty Car Lift - Screw-In Pad
  • APlusLift HW-10KOH-A 10,000LB 2-Post Overhead Heavy Duty Car Lift - Double S Columns
  • APlusLift HW-10KOH-A 10,000LB 2-Post Overhead Heavy Duty Car Lift -Toe Guards and Tool Trays

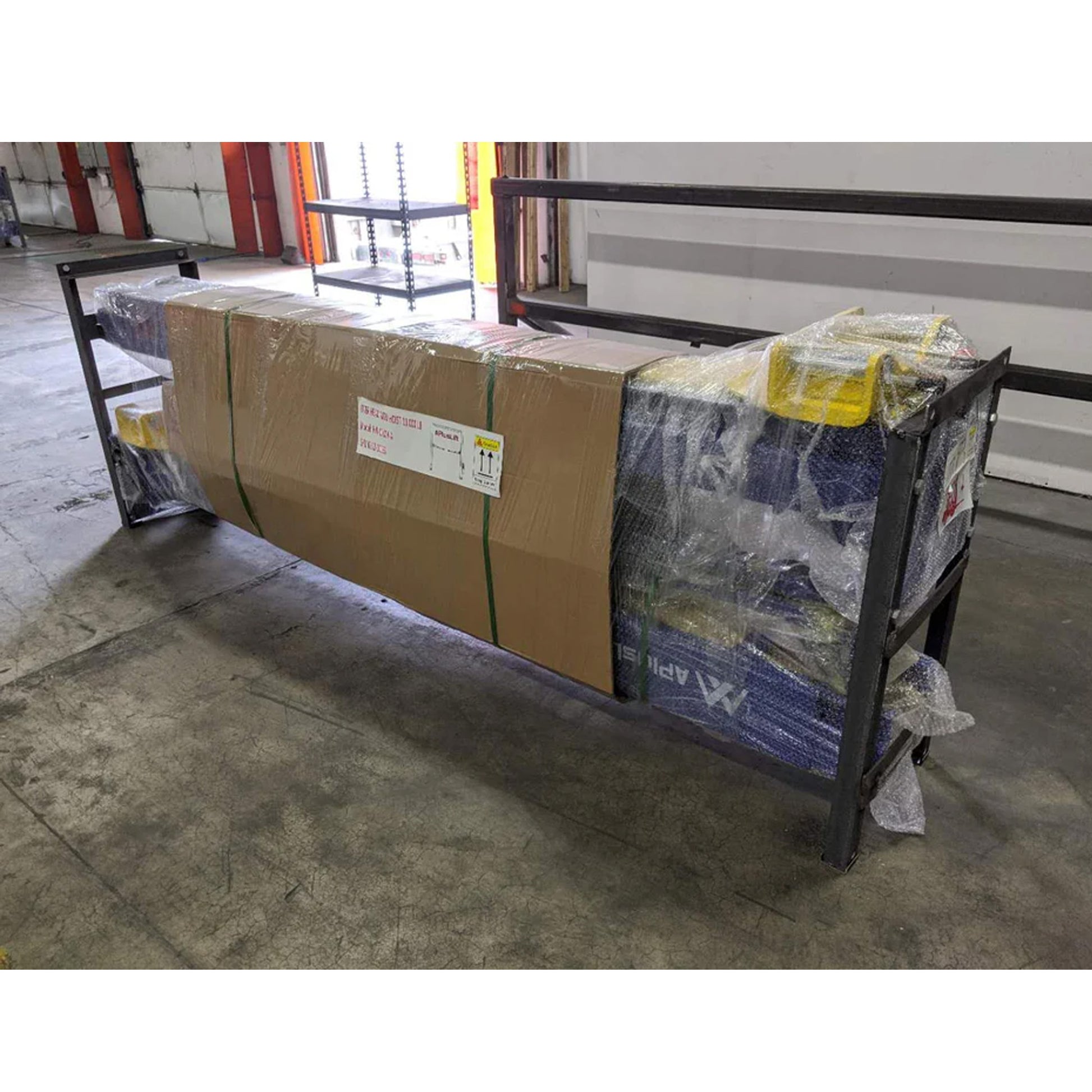

  • APlusLift HW-10KOH-A 10,000LB 2-Post Overhead Heavy Duty Car Lift - Package
1 11

APlusLift

APlusLift 10,000LB 2-Post Overhead Heavy Duty Car Lift with 3 Year Warranty - HW-10KOH-A

APlusLift 10,000LB 2-Post Overhead Heavy Duty Car Lift with 3 Year Warranty - HW-10KOH-A

$3,495.00 CAD
$4,395.00 CAD $3,495.00 CAD
Sale Sold out
Delivery Option

All 2-Post Car Lifts

• Industry leading 3 YEAR WARRANTY

• Combo (Symmetrical and Asymmetrical) Arm Assembly with Adjustable Screw Pads!

• CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity

• One Set of 4" Tall Truck Adapters Included; 6'9" Lift Height Maximum with Truck Adapters

• All Robot Welded Structure with Durable Powder Coated Finish

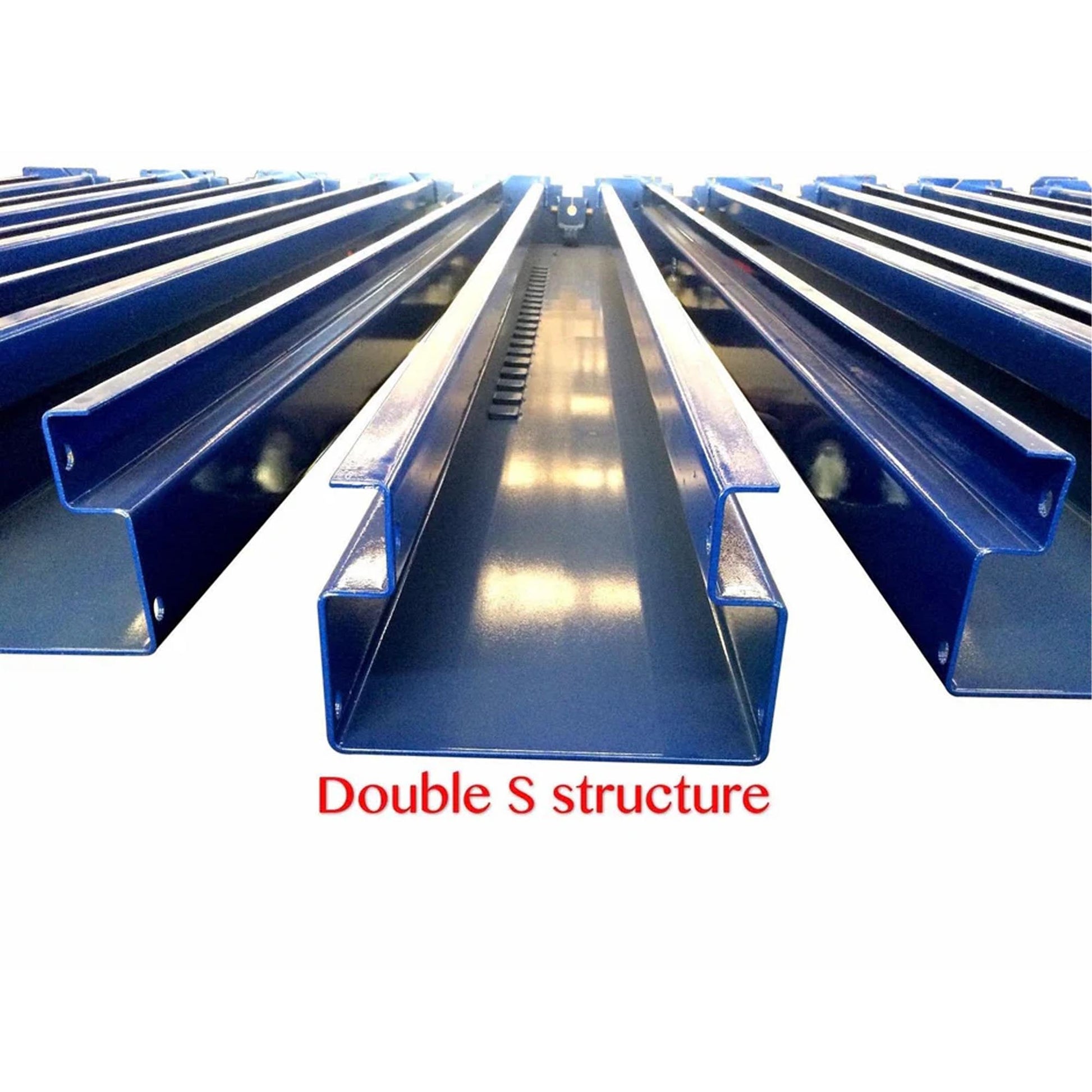

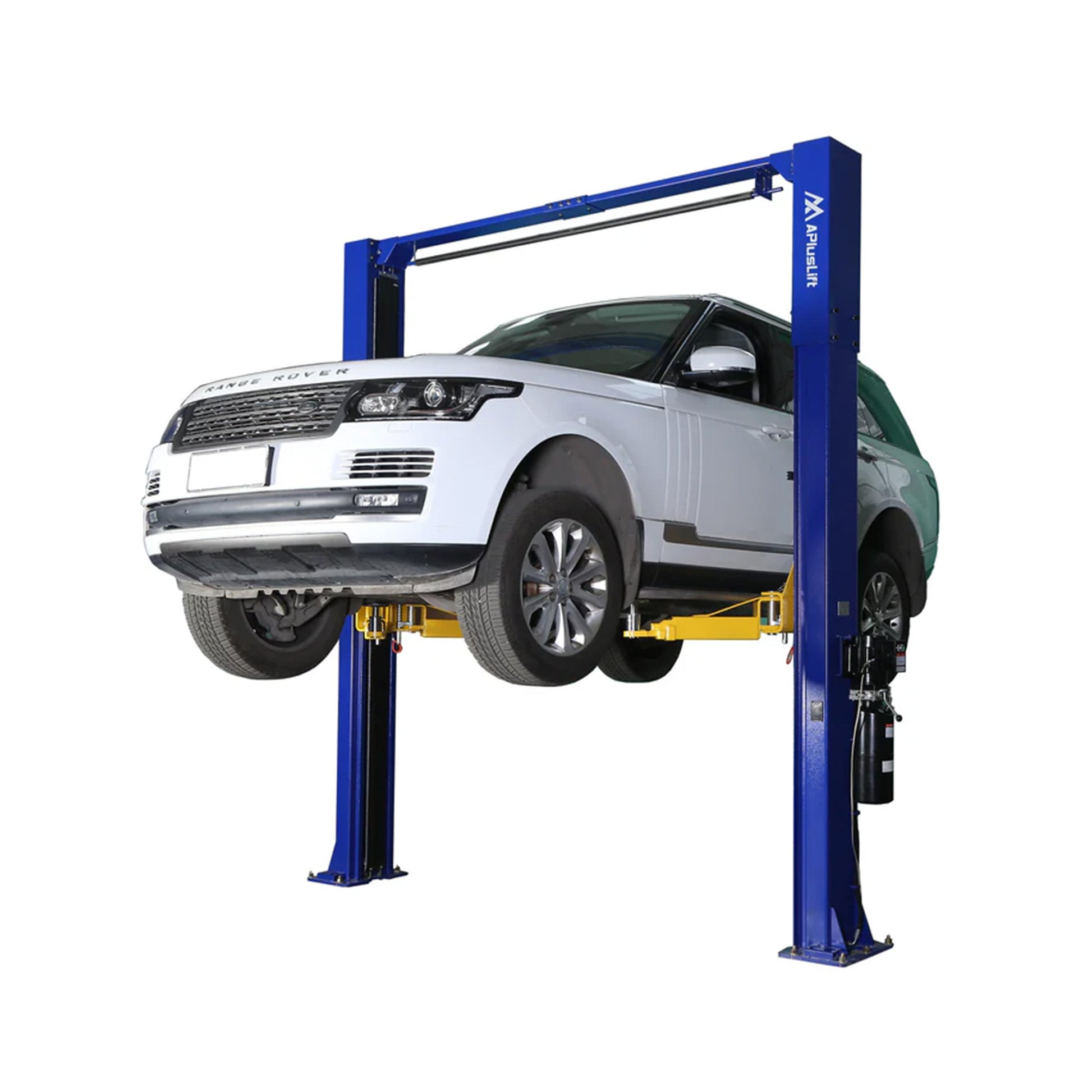

APlusLift HW-10KOH-A car lift (auto hoist) is one of the most affordable overhead car lifts built with quality materials and good workmanship. The lift has a strong double "S" column design to support 10,000 LB capacity. We also have HW-10ASY 10000LB overhead car lift with single point release.

We are proud to offer an industry leading 3 year warranty for all parts! Replacement parts are available upon request. We welcome suggestions to improve our products and service!

Free shipping to most Canadian areas with on-site forklift (or similar), or free pickup at a nearby terminal. Remote areas incur additional fees. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.

Warehouse Pickup Locations (Contact Us for $300 CAD Discount): Calgary (AB) and Toronto (ON).

Frequently Asked Product, Order, and Shipping Questions and Technical Questions

Specifications
Model HW-10KOH-A
(This Model)		 HW-10ASY
(for Comparison)
Manual HW-10KOH-A Manual HW-10ASY Manual
Style Overhead Overhead
Lock Release Double Point Release Single Point Release
Warranty 3 Years (36 months) 3 Years (36 months)
Lifting Capacity 10,000 LB 10,000 LB
Overall Height 143 3/16" 143 3/16"
Overall Width 134 5/16" 139 1/8" (standard)
140 15/32" (post rotated)
Maximum Lift height with Truck Adapters 81" 81"
Maximum Lift height without Truck Adapters 75" 75"
Maximum lift height from bottom of the arm to the ground 71" 71"
Minimum Height of Adjustable Pads from Ground 4" 4"
Drive Through Width (Carriage to Carriage) 100" 104" (symmetric)
97" (asymmetric)
Column to Column Width 109" 113" (symmetric)
107" (asymmetric)
Column Cross Section 11"L x 7"W 11"L x 7"W
Driving Mode Dual hydraulic cylinders, chain drive Dual hydraulic cylinders, chain drive
Motor 220V Single Phase 3HP 10A (recommend a 30A breaker) 220V Single Phase 3HP 10A (recommend a 30A breaker)
Hydraulic Oil 3-5 gallons AW32/AW46 (not included) 3-5 gallons AW32/AW46 (not included)
Time to full rise 50 seconds 50 seconds
Shipping Weight 1470 LB 1470 LB and 120 LB
Shipping package size 113"L x 22"W x 40" H
  • 113"L x 22"W x 40"H (Car Lift)
  • 38"L x 17"W x 14" H (2 ft Height Extension Crate)
Concrete Requirement 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below)
Parts Included

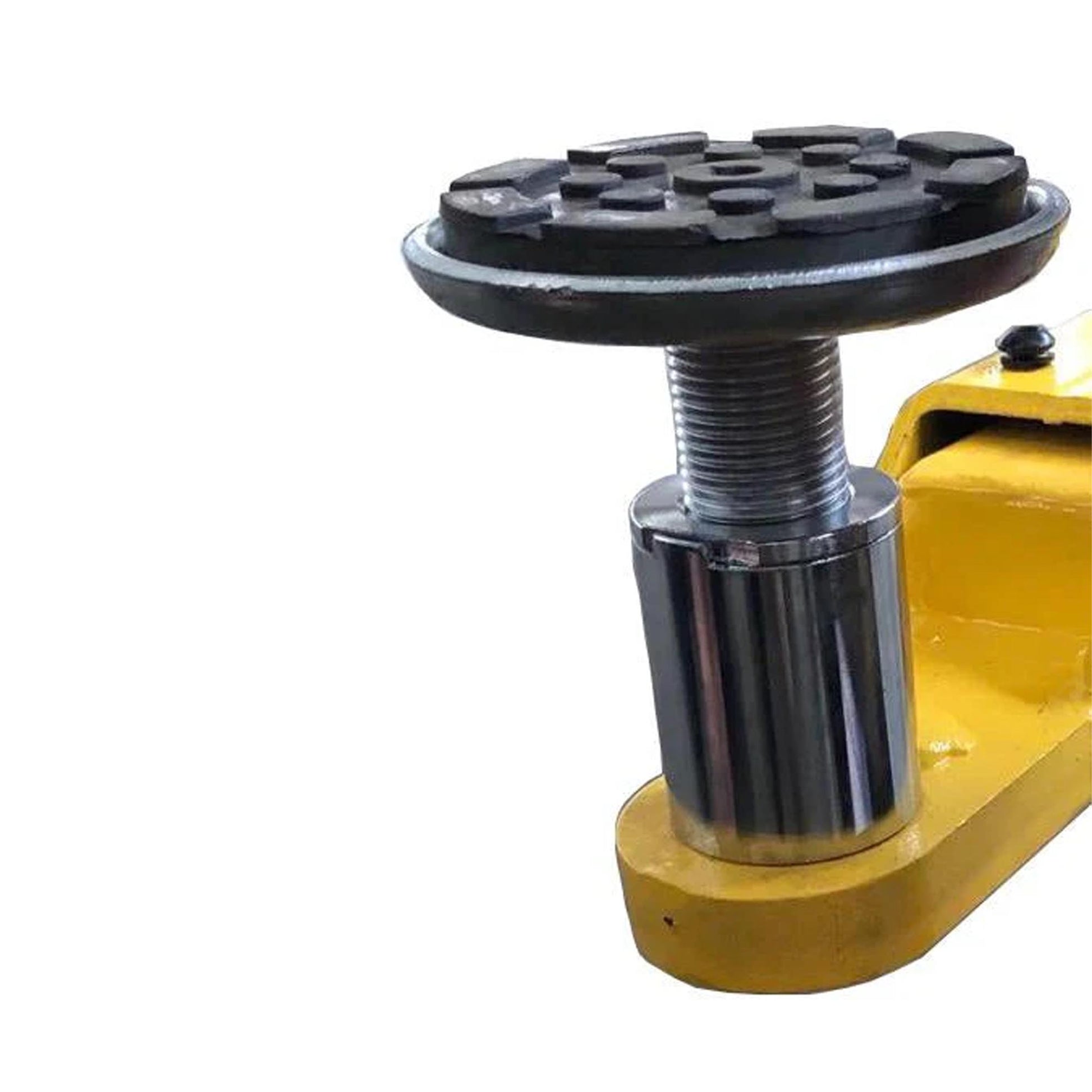

  • 4 pieces of adjustable screw pads
  • 4 pieces of 4" tall truck adapters (height extensions)
  • 10 anchor bolts
  • 10 shims

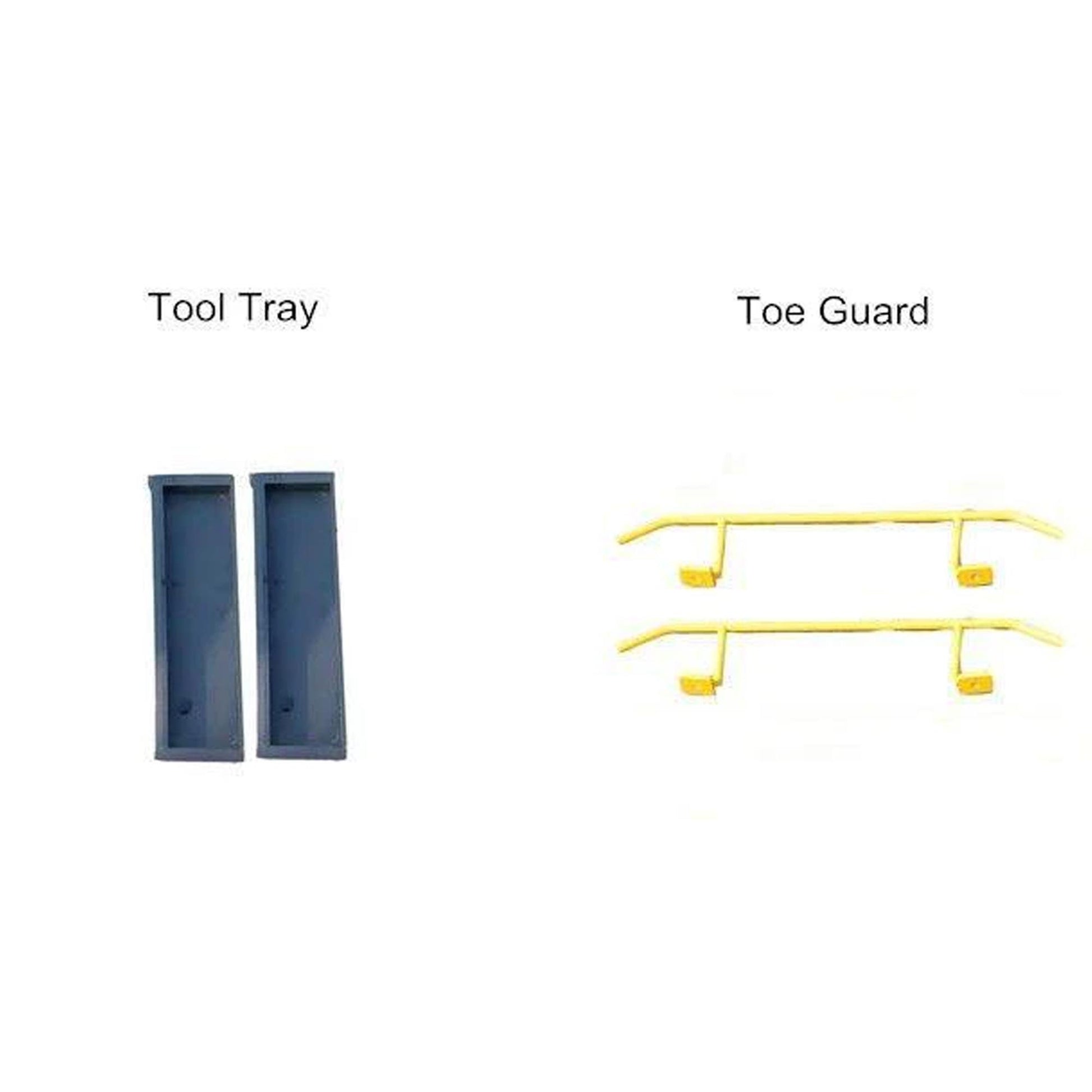

  • 2 tool trays
  • 2 toe guards

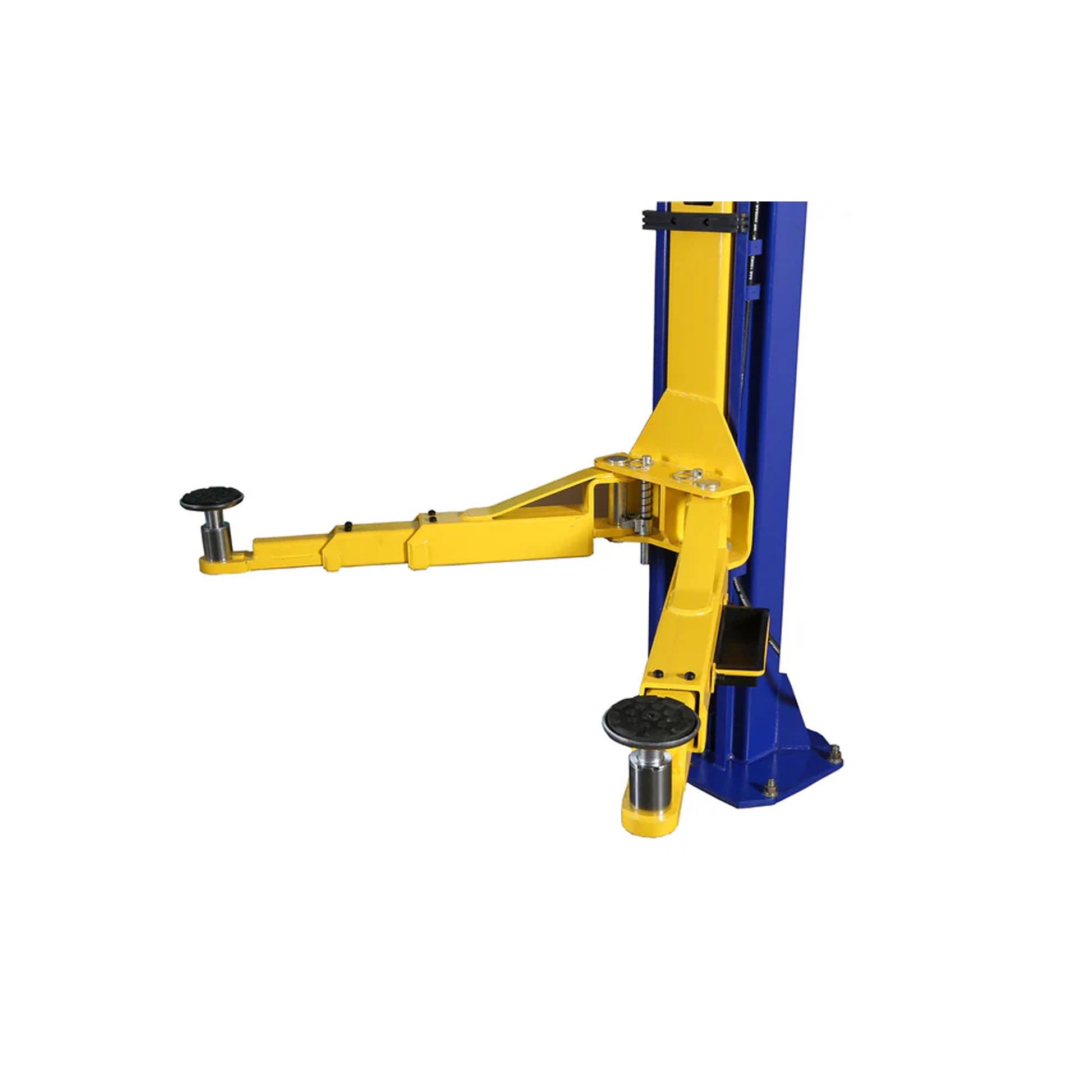

Arm Assembly Combo (symmetrical and asymmetrical) Arm Assembly
Front Arms Straight Front 3 Stage reach from 22 7/8" to 42 5/8"
Back Arms Straight Rear 2 Stage reach from 33 5/8" to 52 7/8"
Column Steel Thickness 13/64"
Carriage Steel Thickness 15/64"
Carriage Yoke Thickness 9/16"
Arm Steel Thickness 15/64"
Base Plate Steel Thickness 5/8"
Model HW-10KOH-A
(This Model)		 HW-10ASY
(for Comparison)

Features

  • CE Certified Lift Structure and Hydraulic System
  • Third party tested with a dynamic load capacity of 115%
  • Third party tested with a static load capacity of 150%
  • Durable hydraulic system
  • Easy to operate and maintain
  • Double point safety lock release
  • Double Seal Rings Protecting PU Material
  • Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
  • Lifting operation by pressing "UP" button on motor
  • Manual lowering operation by pressing lever
  • Relief valve built in power pump to prevent overloading

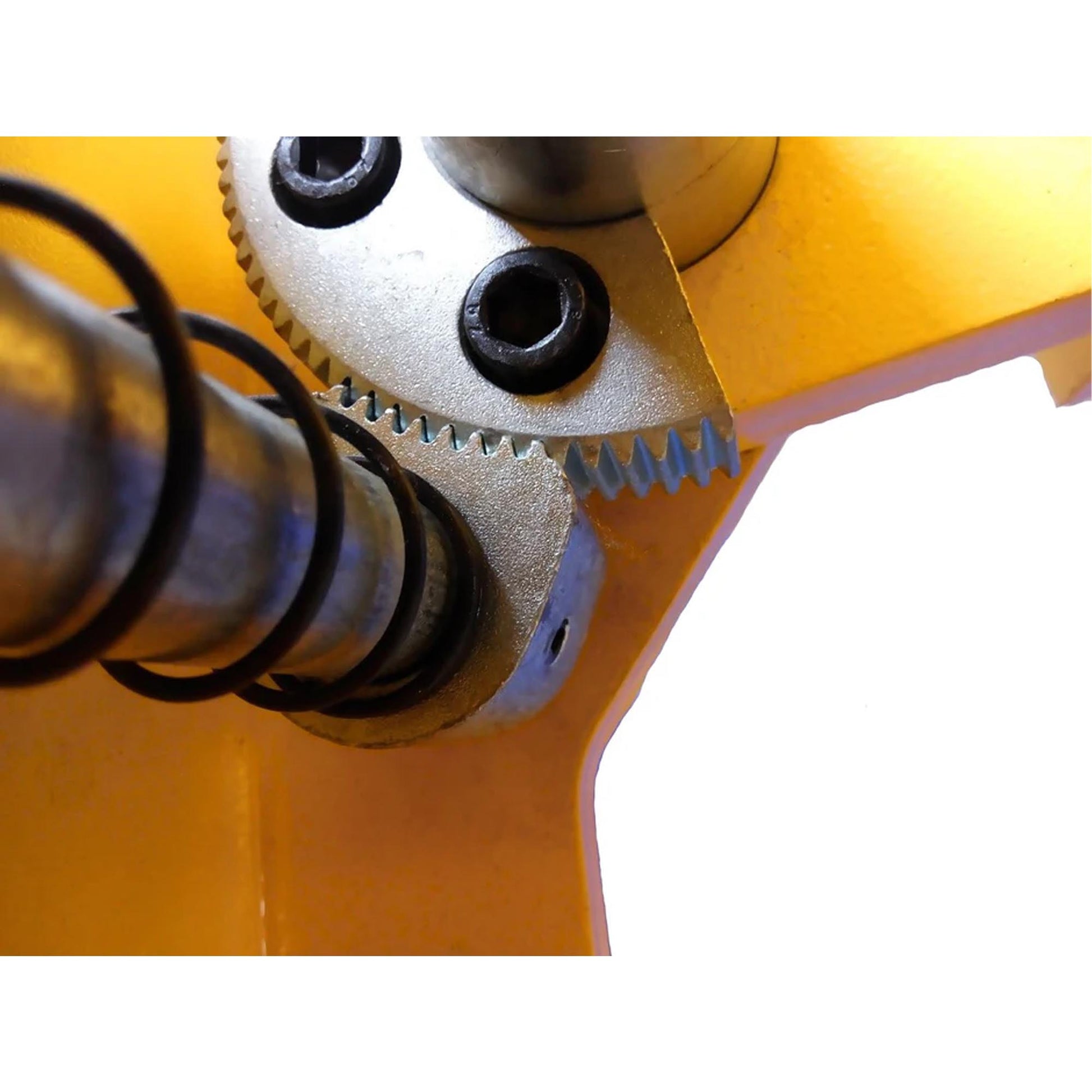

  • Automatic arm lock restraints
  • Relief valve built in power pump to prevent overloading
  • Door guards protection rubber
  • Up-limit switch to protect cylinders working stroke used in safe length scope
  • Heavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process and increase cable life
  • Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
